Removing bowden cable for emergency release

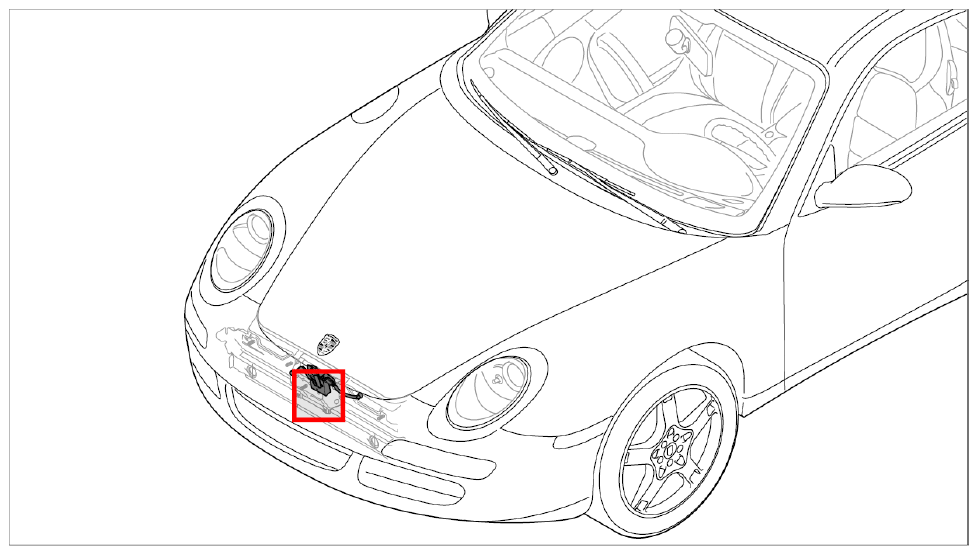

Fig 1: Overview Of Front Lower Part Of Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Twist the bowden cable -direction of arrow-  and remove from the servo motor -1-  .
   Fig 2: Removing Bowden Cable For Emergency Release

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
