Locking electrical plug connection

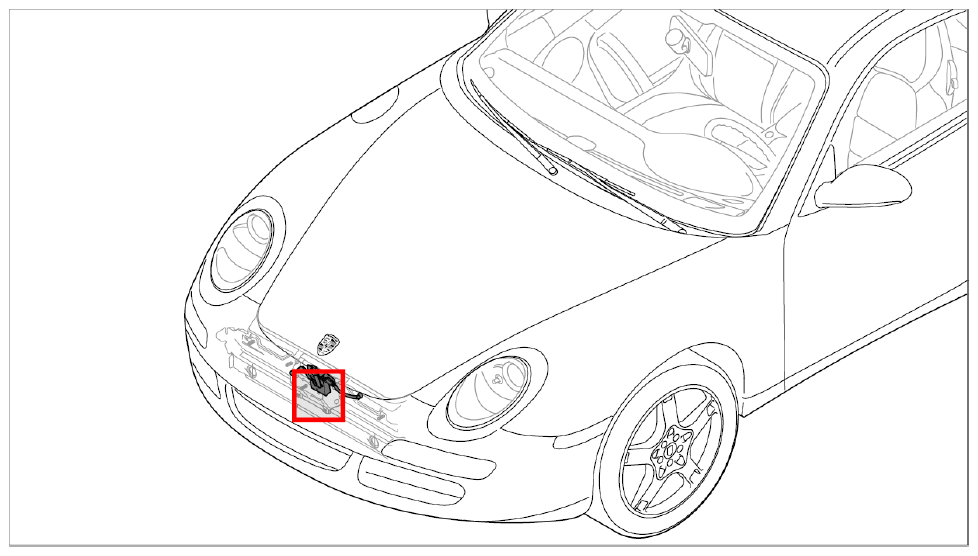

Fig 1: Overview Of Front Lower Part Of Lid Lock
G09824012Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Push together electrical plug connection -1-  until it is felt to engage.

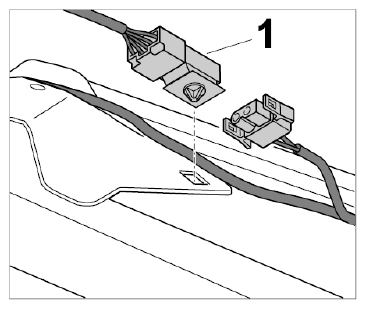

    Fig 2: Locking Electrical Plug Connection
    G09824013Courtesy of PORSCHE CARS NORTH AMERICA, INC.
