Installing lower part of lid lock

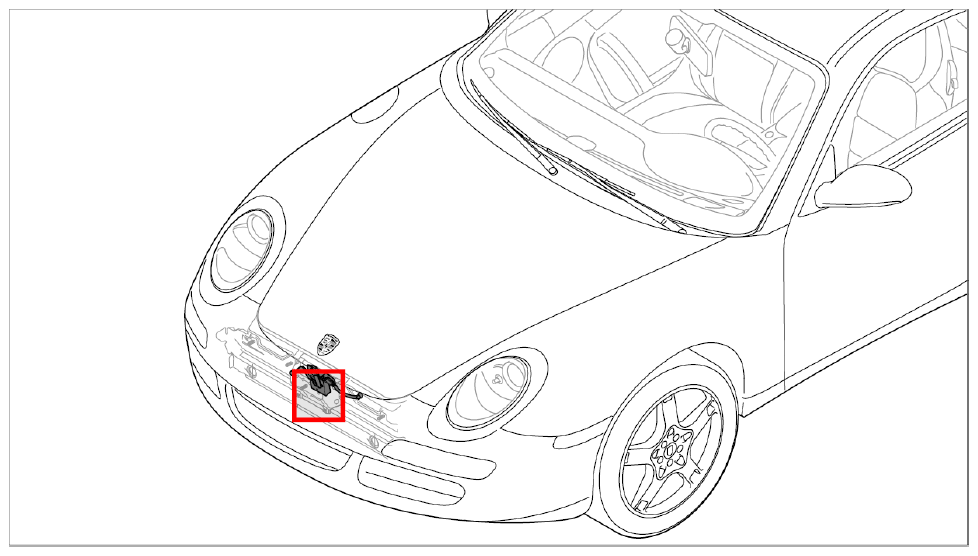

Fig 1: Overview Of Front Lower Part Of Lid Lock
G09824010Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position cover panel -4-  and lower part of lid lock -3-  to the body and tighten using the fastening screws M6 x 16 -2-  . Tightening torque → : 7 ftlb.

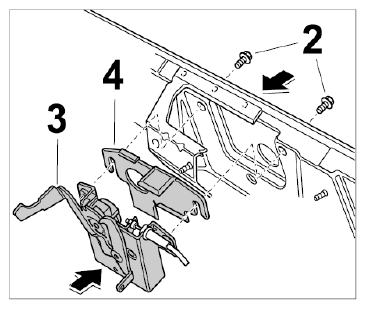

    Fig 2: Installing Lower Part Of Lid Lock
    G09824011Courtesy of PORSCHE CARS NORTH AMERICA, INC.
