55 - Lids, Flaps -- CARRERA (997)
>>
WM 551719 Removing And Installing Front Lower Part Of Lid Lock (All Models)
>>
Installing front lower part of lid lock
>>
Inserting lid-release cable
Inserting lid-release cable

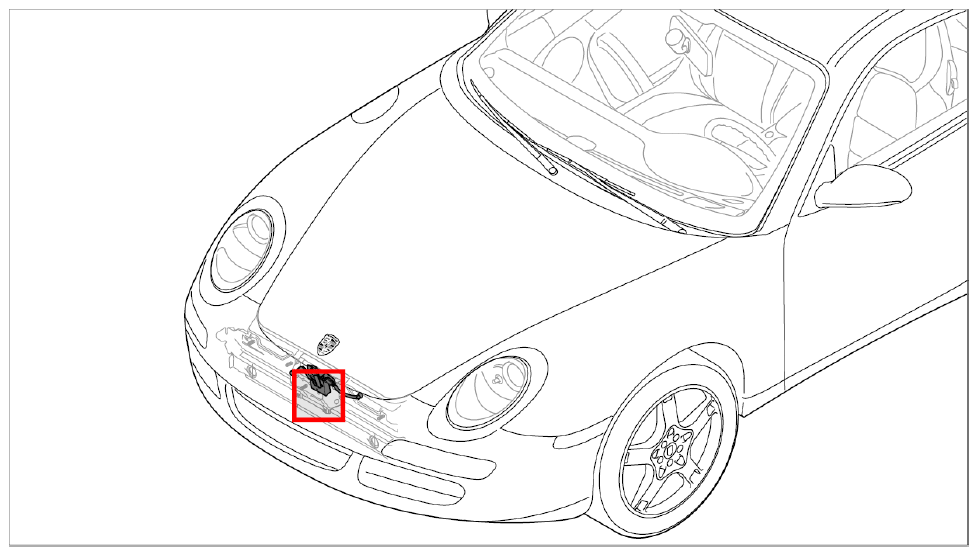

Fig 1: Overview Of Front Lower Part Of Lid Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move release
-6-
in direction of arrow; engage lid-release cable
-5-
in lower part of lock at the front
-3-
.

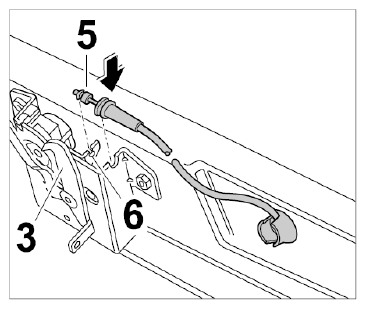

Fig 2: Inserting Lid-Release Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
