Removing Outer Hinge Pillar

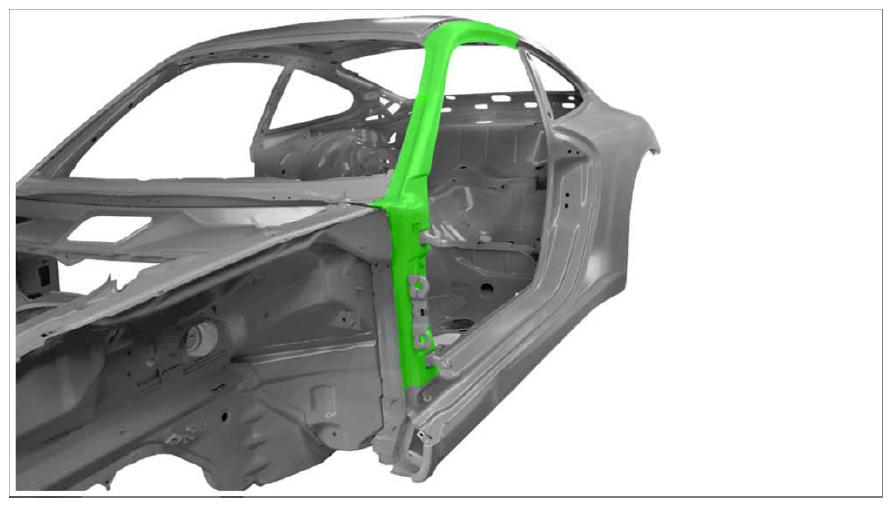

Fig 1: Identifying Hinge Pillar Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Possible separation points on the outer hinge pillar.

The possible separation points on the outer hinge pillar can only be at the marked area -A- and -B-.
If you are sure that there has been no deformation of the roof area structure, the upper separation point in area -C- can be used for the following repair work.

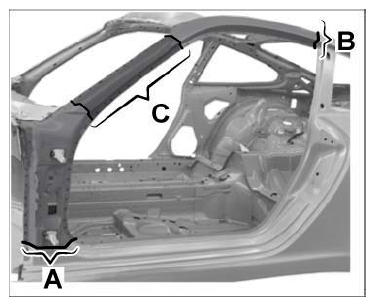

Fig 2: Outer Hinge Pillar Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove roof. → 510355 REPLACING ROOF - section on "Removing"
Determine cut.
1. 2.1. Position separation point -A- so that the spare part for the outer hinge pillar overlaps by approx. 40 mm. Mark the separation point.
2. 2.2. Position separation point -B- so that the spare part for the outer hinge pillar overlaps by approx. 40 mm. Mark the separation point.

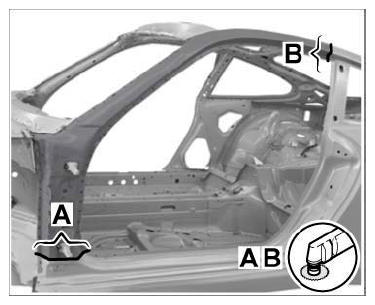

  Fig 3: Cutting Through Outer Hinge Pillar
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cut through the outer hinge pillar.
1. 3.1. Cut through the hinge pillar in area -A- .
2. 3.2. Cut through the outer hinge pillar in area -B- .
Separate inert-gas welded seams.
1. 4.1. Separate inert-gas welded seams in areas -A- and -B- .

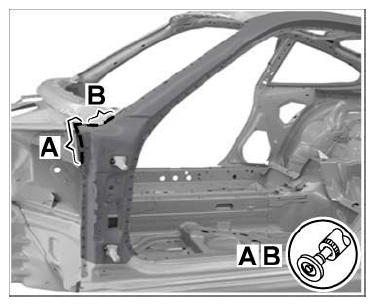

  Fig 4: Separating Inert-Gas Welded Seams
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mill off spotwelds.
1. 5.1. Mill off spotwelds in areas -A, B- .

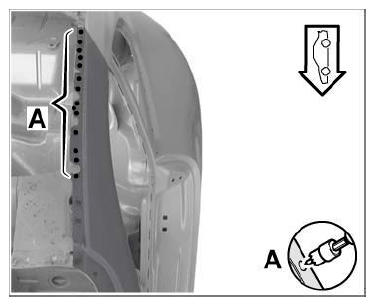

  Fig 5: Cutting Spotwelds
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mill off and separate spotwelds.
1. 6.1. Mill off spot welds in areas -A- and -B- .
2. 6.2. Separate spotwelds in area -C- .

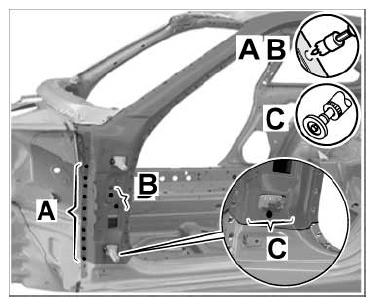

  Fig 6: Separating Spotwelds
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mill off spotwelds.
1. 7.1. Mill off spot welds in area -A- from above.

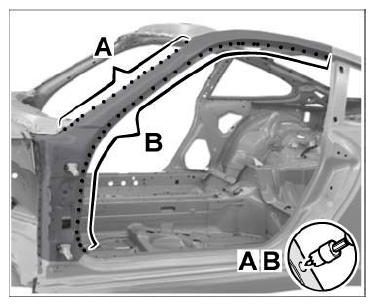

  Fig 7: Cutting Spotwelds
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws.

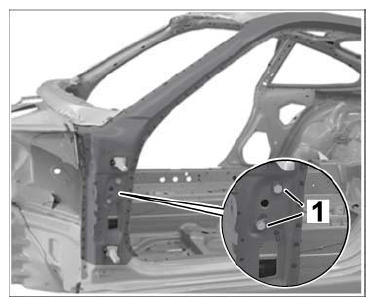

1. 8.1. Unscrew fastening screws -1- .

  Fig 8: Removing Fastening Screws
