Preparing Connection Areas Of Body For Installing Outer Hinge Pillar

  1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C, D, E, F-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

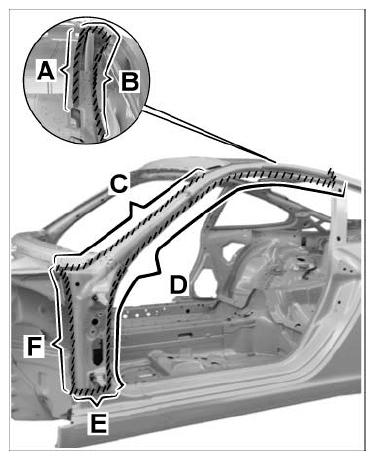

    Fig 1: Identifying Body Connecting Flanges Welding Areas
    G09822970Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Coat spot-weld flange areas with zinc powder paint.
    1. 2.1. Coat all spot-weld flange areas with zinc powder paint.
