Loosening Inner Rear Center Panel

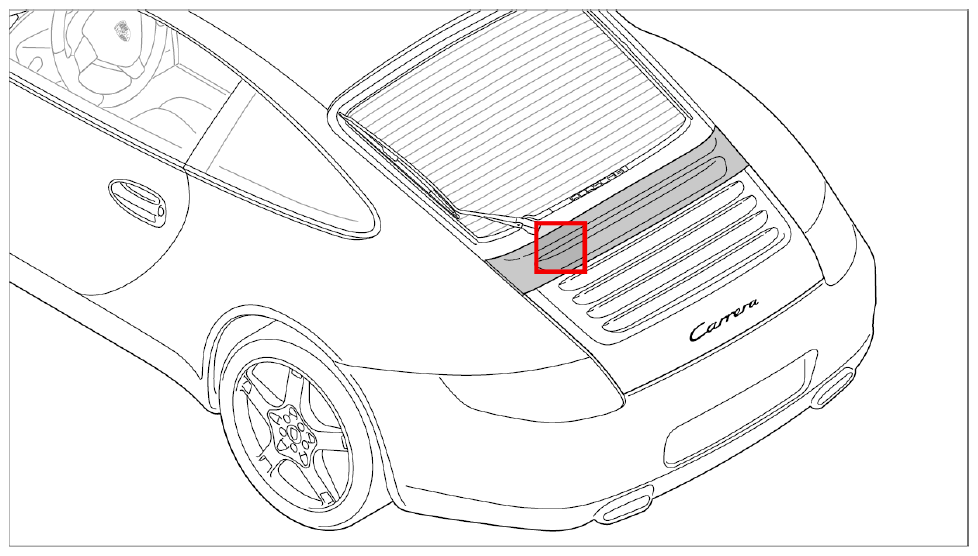

Fig 1: Inner Rear Center Panel Component Location
G09822917Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove sound absorbent film.

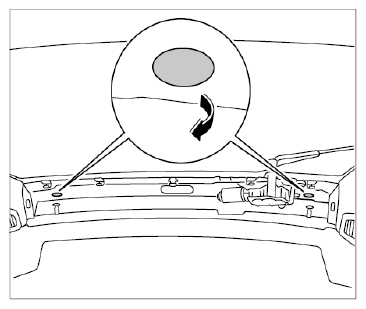

    Fig 2: Removing Sound Absorbent Film
    G09822918Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening nut -1-  and remove seal -2-  .
    Fig 3: Loosening Inner Rear Center Panel
    G09822919Courtesy of PORSCHE CARS NORTH AMERICA, INC.
