Disconnecting Plug Connection For Radio Antenna
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
Only for vehicles with radio antenna.

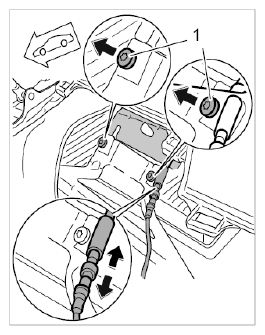

- Unclip the locking mechanism for the antenna line. Disconnect antenna line and undo the fastening screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
