Installing Cowl Panel Cover: Notes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Two persons are needed to remove the cowl panel cover!

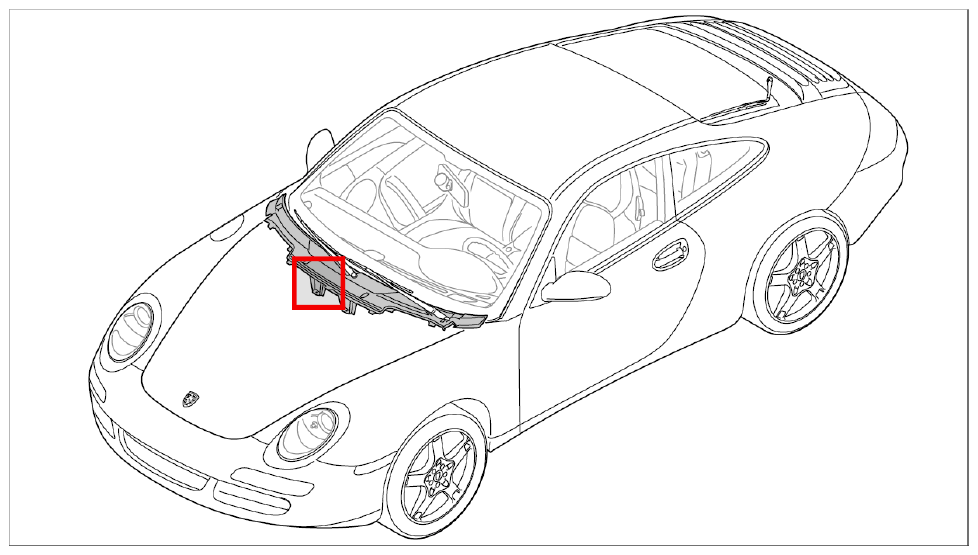

1. Insert cowl panel cover -2-  in the plenum panel and align.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

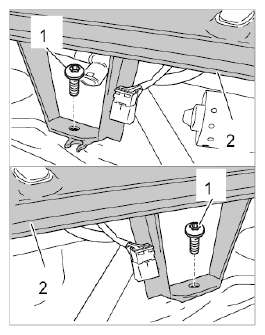

2. Tighten fastening screws -1-  . Tightening torque → Tightening torque: 1.5 ft. lb.
