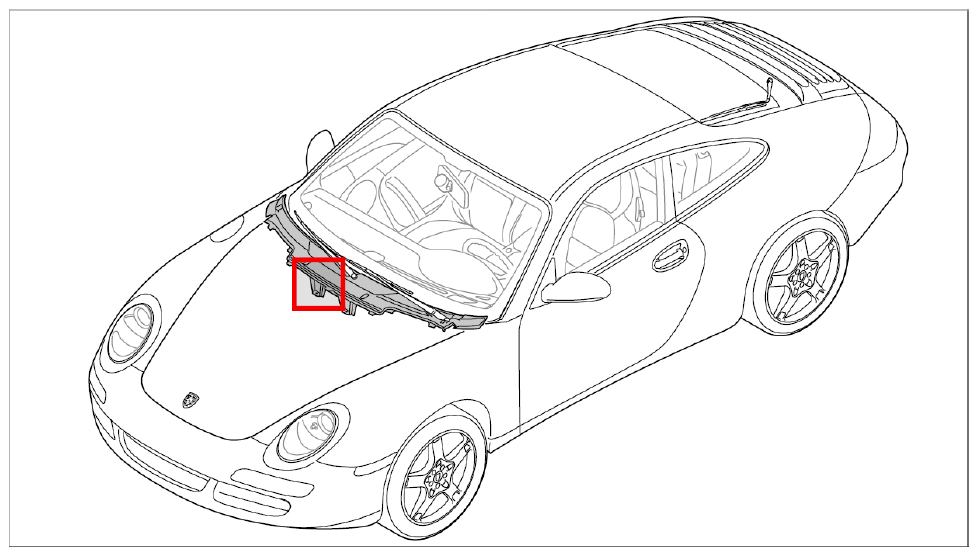

Locking Plug Connection For Radio Antenna

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with radio antenna.

1. Connect the antenna line and clip on the fuse.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

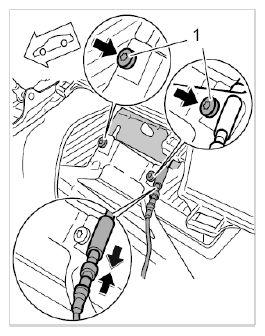

2. Slide antenna onto its support and screw it down with the fastening screws -1-  .
