Fastening Upper Cowl Panel Cover

G09822737Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Insert sliding plate -4-  , spring element -3-  and clamping bush -2-  . Tighten fastening nuts -1-  .

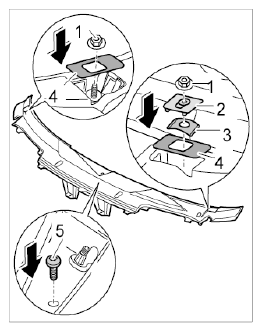

    G09822738Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Tighten fastening screw -5-  .
