Removing Inner Front Side Member

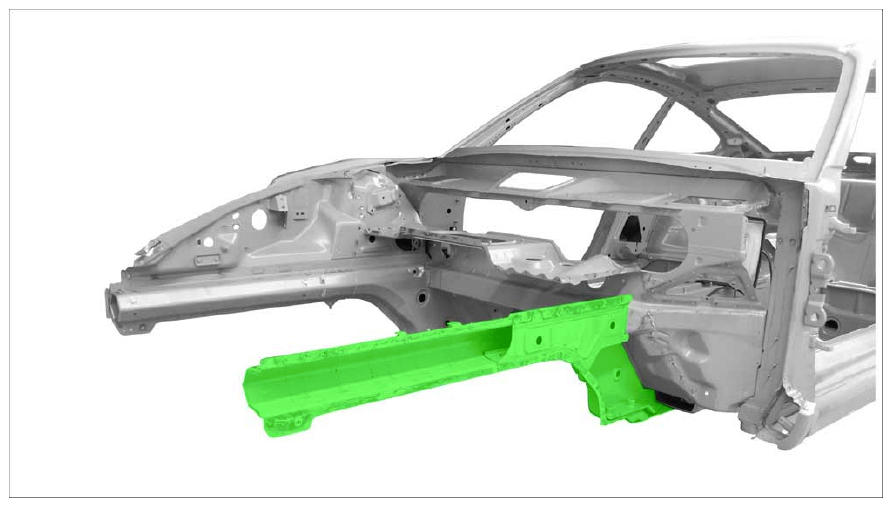

Fig 1: Inner Front Side Member Component Location (All Models)

G09822701

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the end plate. → 501055 REPLACING END PLATE - section on "Removing"
Remove floor front section. → 502055 REPLACING FLOOR FRONT SECTION - section on "Removing"
Remove front wheel housing. → 507455 REPLACING WHEEL HOUSINGS AND SIDE MEMBERS - section on "Removing"

Separate welded seams.

4.1. Separate inert-gas welded seams in area -A- using a parting grinder.

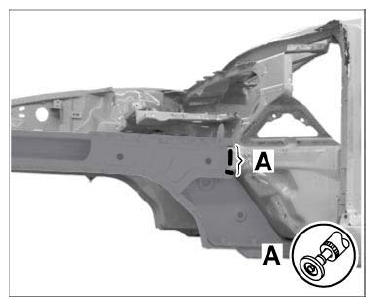

G09822702

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separate welded seams.

5.1. Separate inert-gas welded seams in areas -A- and -B- using a parting grinder.

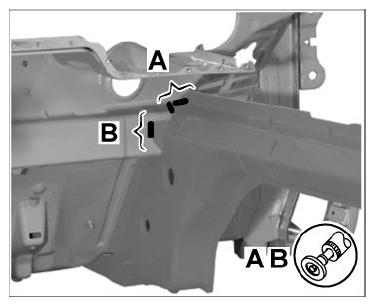

G09822703

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separate welded seams.

6.1. Separate inert-gas welded seams in area -A- using a parting grinder.
6.2. Separate inert-gas plug welds in area -B- using a parting grinder.

6.3. Separate inert-gas slot welds in area -C- using a parting grinder.

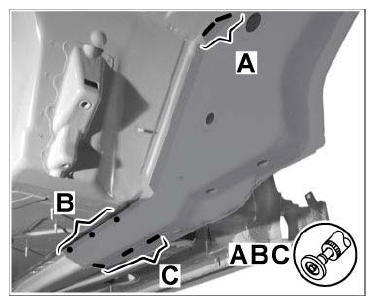

G09822704

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mill off spotweld.

7.1. Mill off spotweld in area -A- using a spotweld cutter.

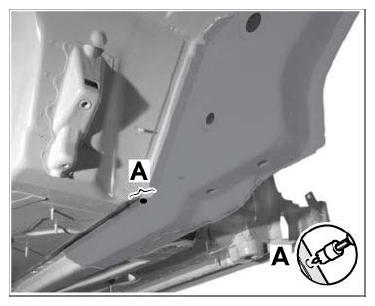

G09822705

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mill off spotwelds.

8.1. Mill off spotwelds in area -A- using a spotweld cutter.

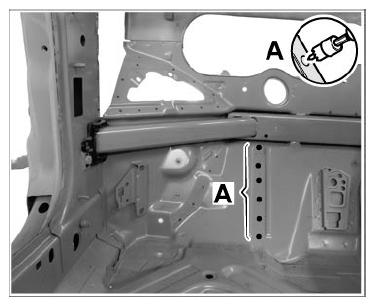

G09822706
