Removing Front Side Member (Section)

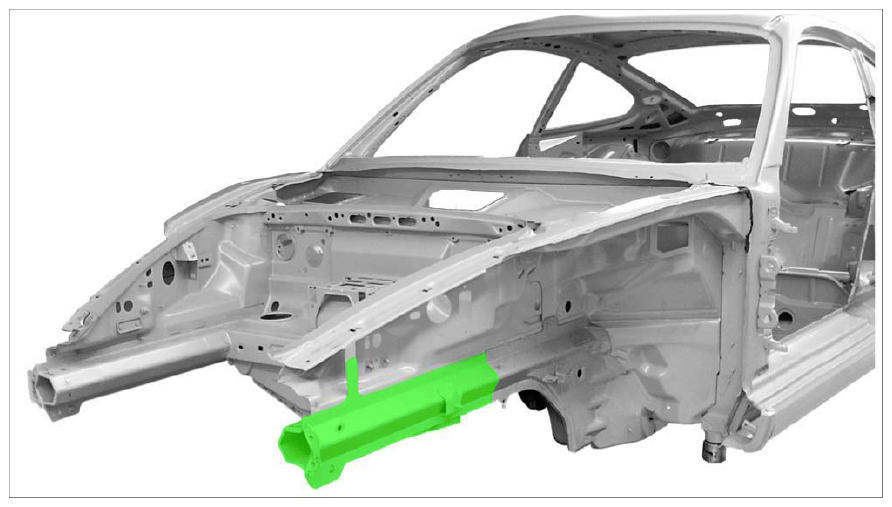

Fig 1: Front Side Member Component Location (Section) (All Models)
G09822674Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove front closing panel. → 501055 REPLACING CLOSING PANEL  - section on "Removing"

    Information

    If you are sure there has been no deformation of the wheel housing and floor front section structure, the cuts can be made during the following repairs without removing the wheel housing and floor front section.

  2. Remove front wheel housing (section). → 507455 REPLACING FRONT WHEEL HOUSING (SECTION)  - section on "Removing"
  3. Remove floor front section. → 502055 REPLACING FLOOR FRONT SECTION  - section on "Removing"

    Information

    Possible separation points on inner front side member.

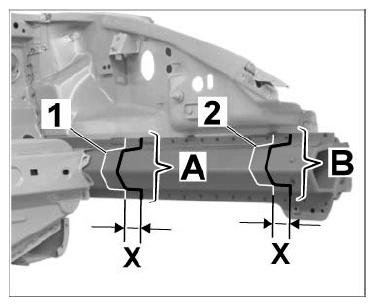

    • Cuts can only be made on the inner front side member at dimension -X= 30 mm-  , in the marked areas -A- and -B- in front of the tailored blank (laser weld) -1, 2- against the direction of travel.
      G09822675Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Determining the cut

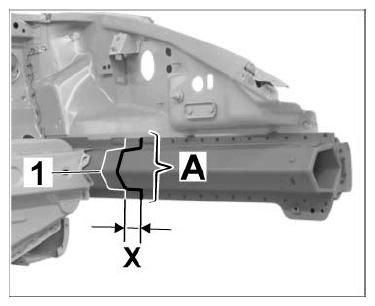

    1. 4.1. Determine possible cut on the inner front side member at dimension -X = 30 mm-  in front of the tailored blank (laser weld) -1-  . Mark the cut.
      G09822676Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Cutting through inner front side member
    1. 5.1. Cut through the inner front side member at the marked separation point -A-  using the oscillating body saw. Do not damage internal components when doing this.
      G09822677Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Milling off spotwelds

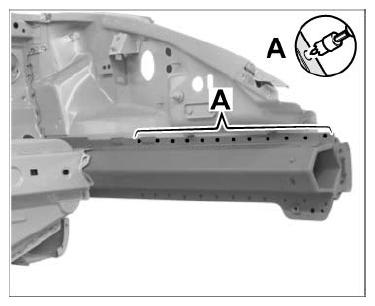

    1. 6.1. Mill off spotwelds in area -A-  using a spotweld cutter.
      G09822678Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Ensure that the outer side member is offset by dimension X = min. 50 mm  with respect to the inner side member.

  7. Determining the cut

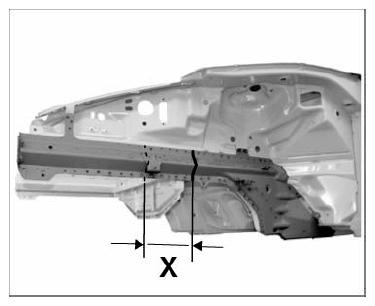

    1. 7.1. Mark cut on the outer front side member depending on the damage at dimension -X = min. 50 mm-  in front of the inner tailored blank (laser weld) against or in the direction of travel.
      G09822679Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Cutting through outer front side member

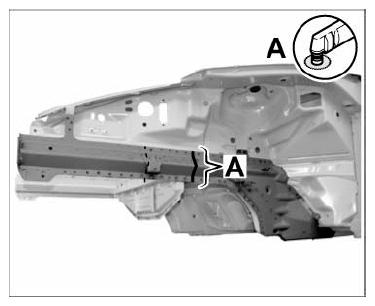

    1. 8.1. Cut through the outer front side member at the marked separation point -A-  using the oscillating body saw. Do not damage internal components when doing this.
      G09822680Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Milling off spotwelds

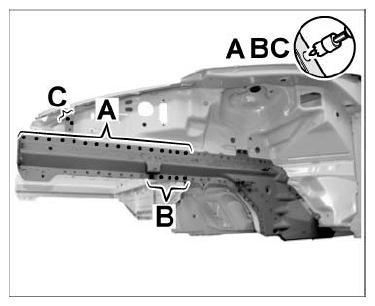

    1. 9.1. Mill off spotwelds in areas -A, B, C-  using a spotweld cutter.
      G09822681Courtesy of PORSCHE CARS NORTH AMERICA, INC.
