Removing Front Wheel Housing (Section)

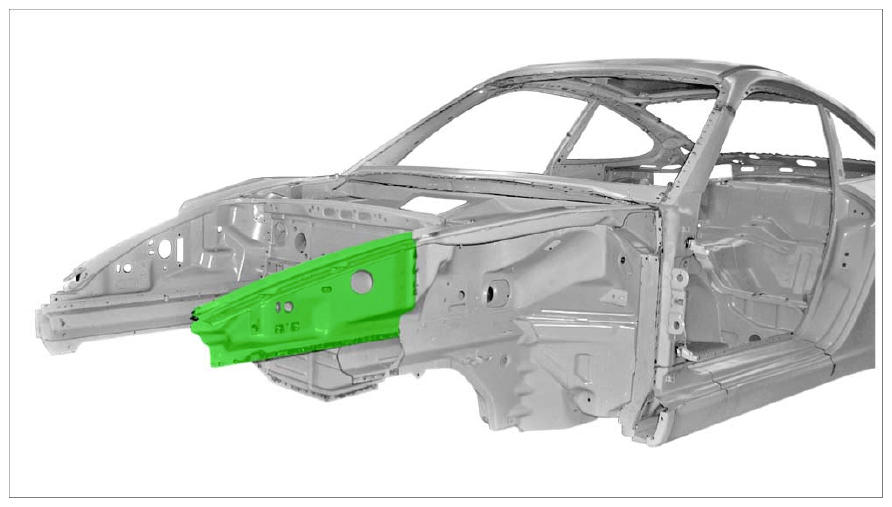

Fig 1: Front Wheel Housing Component Location (Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove front side member (section). → 507955 REPLACING FRONT SIDE MEMBER (SECTION)  - section on "Removing"
2. Determining the cut

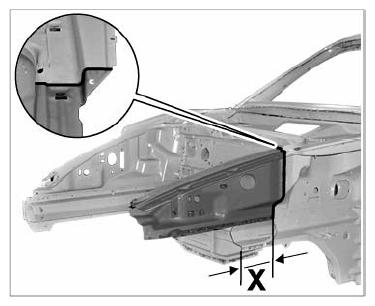

   1. 2.1. Mark position of cut on front wheel housing at dimension -X= 140 mm-  from cut on inner side member against the direction of travel so that the outer side member is offset with respect to the front wheel housing.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Cutting through front wheel housing

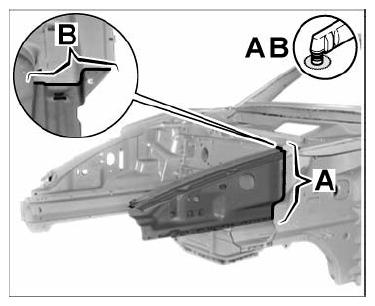

   1. 3.1. Cut through the front wheel housing at the marked separation points -A-  and -B-  using the oscillating body saw. Do not damage internal components when doing this.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Milling off spotwelds

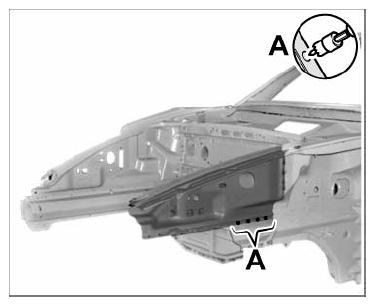

   1. 4.1. Mill off spotwelds in area -A-  using a spotweld cutter.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
