Removing Reinforcement For Front Wheel Housing

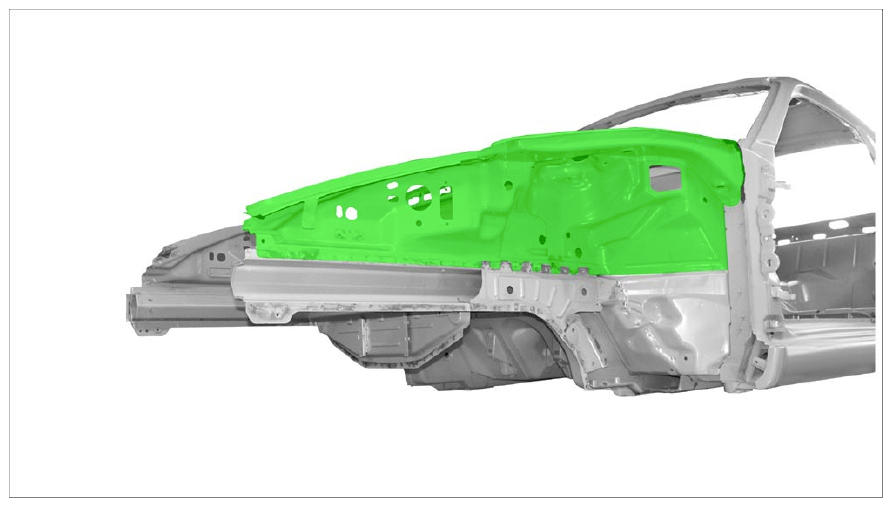

Fig 1: Front Wheel Housing Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove outer front side member. → 507755 REPLACING OUTER FRONT SIDE MEMBER  - section on "Removing"
2. Mill off spotwelds.

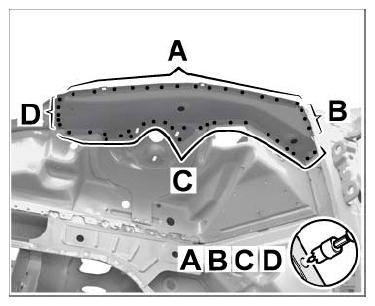

   1. 2.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
