Subsequent Work

  1. Spray the cut edge with cavity preservation.

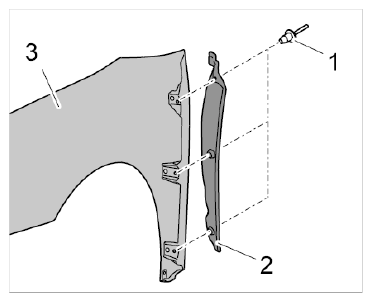

  2. Position masking panel -2-  on the wing -3-  .
    G09822590Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press in plastic expansion rivet -1-  and secure with the pin.
  4. Install front door. → 575119 REMOVING AND INSTALLING DOOR - section on "Installing"
