Reworking Front Wheel Housing

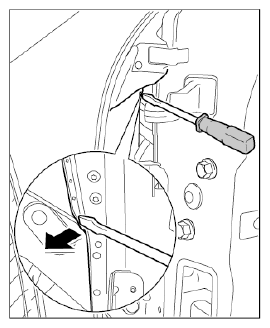

  1. Position a screwdriver between the cut edge of the hinge pillar and wheel housing and tap it in approx. 10 mm with a hammer.
    G09822589Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Widen the gap between the cut edges by turning the screwdriver.
