Preliminary Work

  1. Remove front door.→ 575119 REMOVING AND INSTALLING DOOR - section on "Removing"

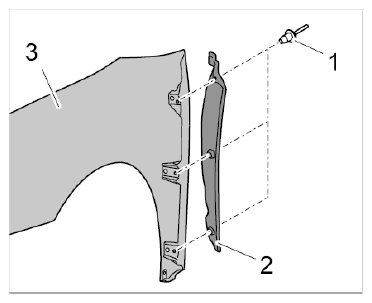

  2. Press pin out of the plastic expansion rivet -1-  and remove masking panel -2-  from the wing -3-  .
G09822588Courtesy of PORSCHE CARS NORTH AMERICA, INC.
