Removing Front Wheel Housing Liner - Rear Section

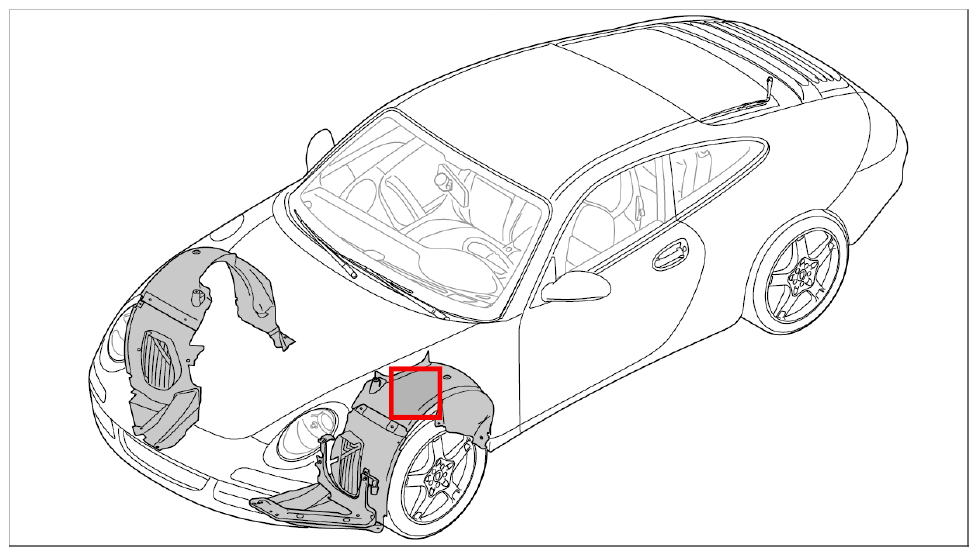

Fig 1: Front Wheel Housing Liner Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

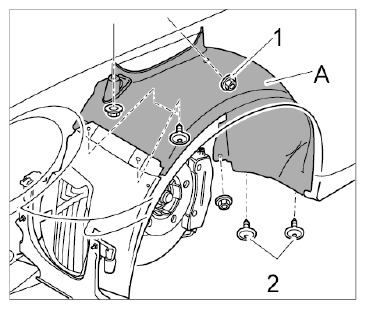

1. Unscrew fastening nuts -1-  and fastening screws -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Remove wheel housing liner -A-  .
