Remove Front Wheel Housing Liner - Front Section

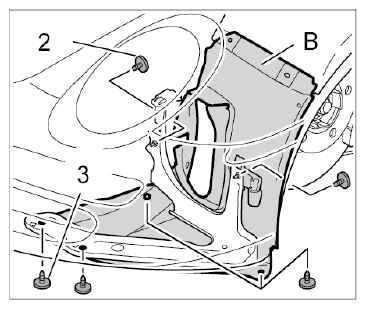

  1. Unscrew fastening screws -2, 3-  and remove the front section of the front wheel housing liner -B-  .
    G09822580Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Unscrew fastening screws -2, 3-  and remove the front section of the front wheel housing liner -B-  .
    G09822585Courtesy of PORSCHE CARS NORTH AMERICA, INC.
