Installing Front Wheel Housing Liner - Rear Section

Information

• Push in wheel housing liner toward the outside up to contact in wing stop position.
• Ensure that the right wheel housing liner is guided through the opening on the wheel well.

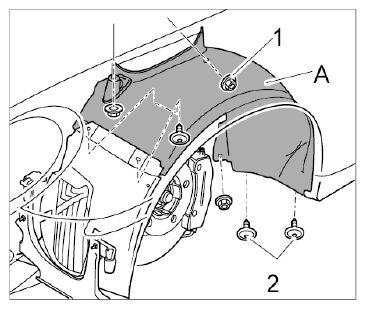

1. Insert wheel housing liner -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Tighten fastening nuts -1-  . → Tightening torque: 2.5 Nm (2 ft. lb.)  .
3. Tighten fastening screws -2-  . → Tightening torque: 2.8 Nm (2 ft. lb.)  .

Information

• Push in wheel housing liner toward the outside up to contact in wing stop position.
• Ensure that the right wheel housing liner is guided through the opening on the wheel well.

1. Insert wheel housing liner -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Tighten fastening nuts -1-  . → Tightening torque: 2.5 Nm (2 ft. lb.)  .
3. Tighten fastening screws -2-  . → Tightening torque: 2.8 Nm (2 ft. lb.)  .
