Install Front Wheel Housing Liner - Front Section

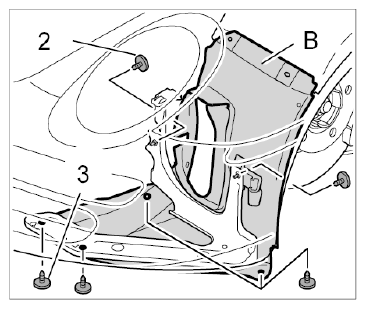

  1. Insert front section of front wheel housing liner -B-  .
    G09822581Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Tighten fastening screws -2-  . → Tightening torque: 2.8 Nm (2 ft. lb.)
  3. Tighten fastening screws -3-  . → Tightening torque: 2.8 Nm (2 ft. lb.)


  1. Insert front section of front wheel housing liner -B-  .
    G09822586Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Tighten fastening screws -2-  . → Tightening torque: 2.8 Nm (2 ft. lb.)
  3. Tighten fastening screws -3-  . → Tightening torque: 2.8 Nm (2 ft. lb.)
