Removing Retaining Strip

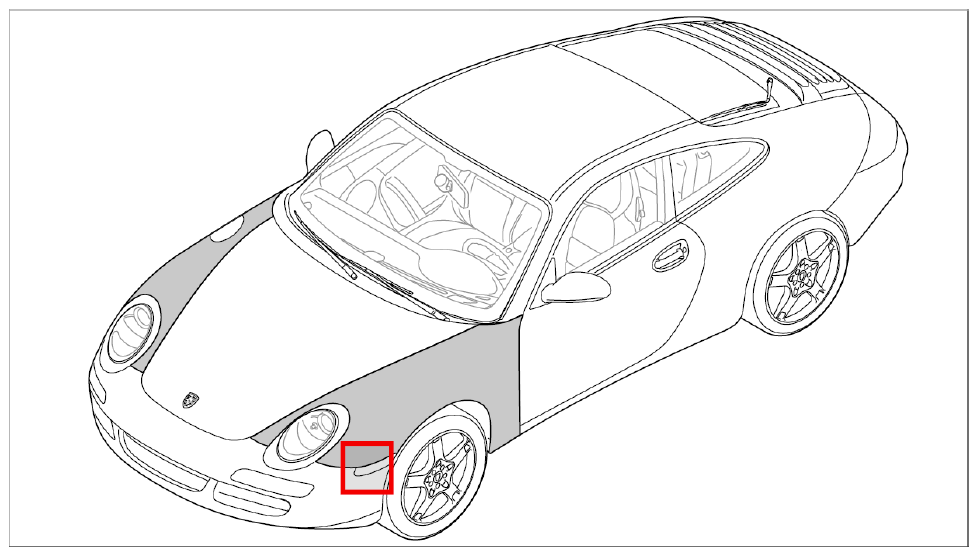

G09822554Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screw -14-  from retaining strip -15-  and remove retaining strip.

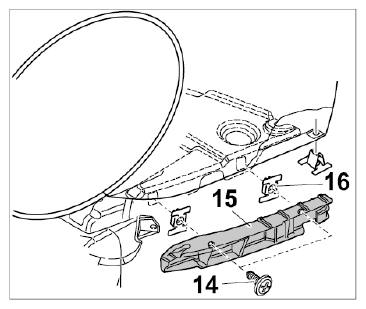

    G09822555Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip fastening nut -16-  .
