Releasing Wing From A-Pillar

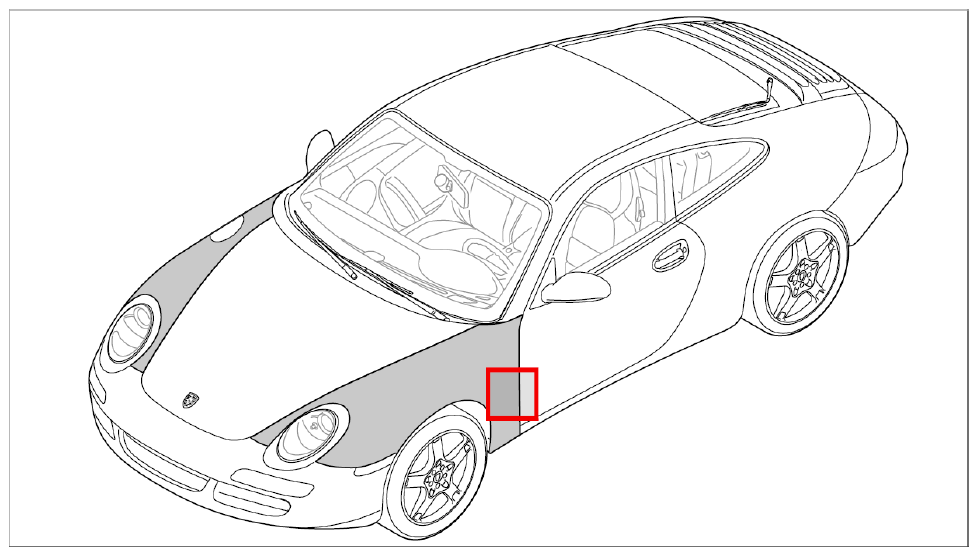

G09822558Courtesy of PORSCHE CARS NORTH AMERICA, INC.

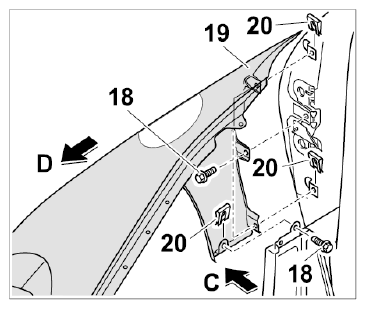

  1. Unscrew fastening screws -18-  at A-pillar and pull wing out -19-  downwards -C-  and forwards -D-  .
    G09822559Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check fastening nut -20-  , replacing if necessary.
  3. Remove switching element for filler flap. → 553819 REMOVING AND INSTALLING SWITCHING ELEMENT FOR FILLER FLAP - chapter on "Removing"
