Releasing Tank Filler Neck

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The following points apply only to the right wing.

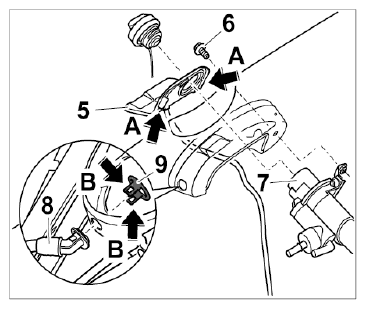

1. Press locking tabs of sleeve -A-  and unclip -5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Unscrew fastening screw -6-  of tank filler neck -7-  .
3. Remove angled pipe -8-  . To do this, press apart locking tabs -B-  of plastic clip -9-  and remove.
