Releasing Bottom Of Wing

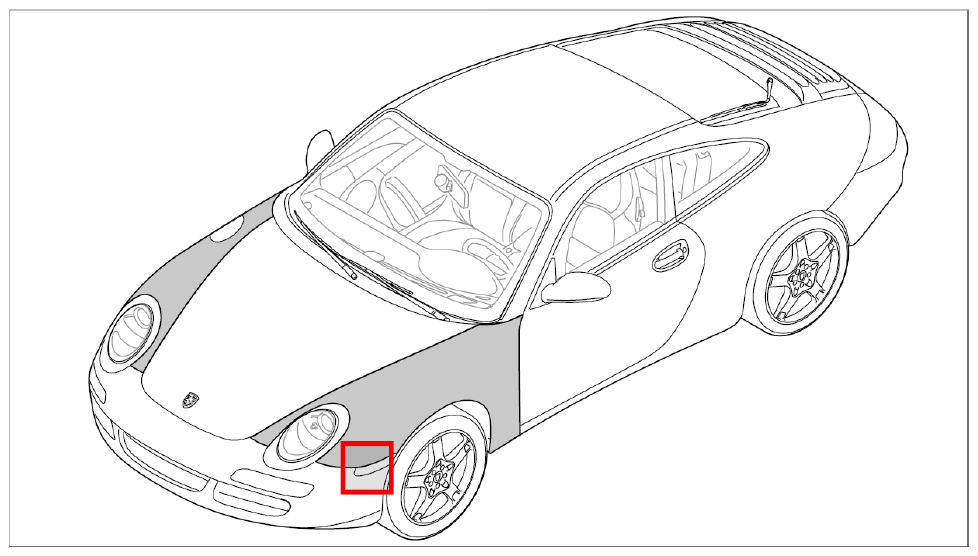

G09822550Courtesy of PORSCHE CARS NORTH AMERICA, INC.

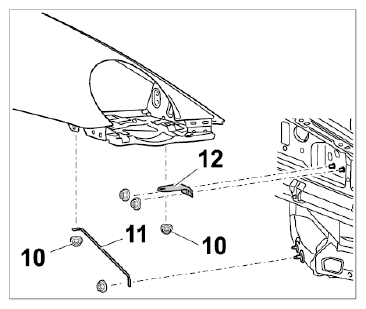

  1. Release fastening nut -10-  from wing strut -11-  and unscrew bracket -12-  .
    G09822551Courtesy of PORSCHE CARS NORTH AMERICA, INC.
