Installing Retaining Strip

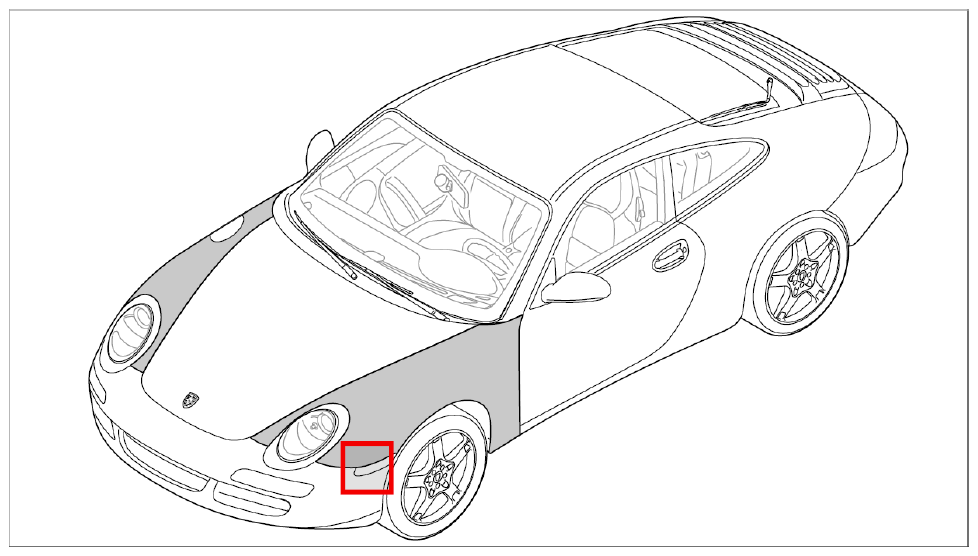

G09822572Courtesy of PORSCHE CARS NORTH AMERICA, INC.

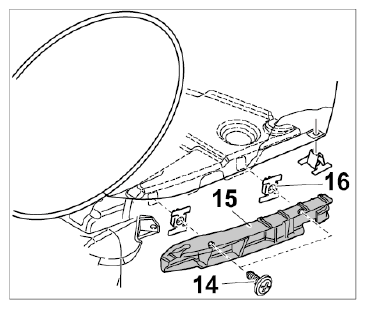

  1. Clip fastening nuts -16-  into place. Fix retaining strip -15-  on the wing up against the stop and tighten with the fastening nuts -14-  . Tightening torque → Tightening torque: 2.0 ft. lb.
    G09822573Courtesy of PORSCHE CARS NORTH AMERICA, INC.
