Installing Fuel Tank Cap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

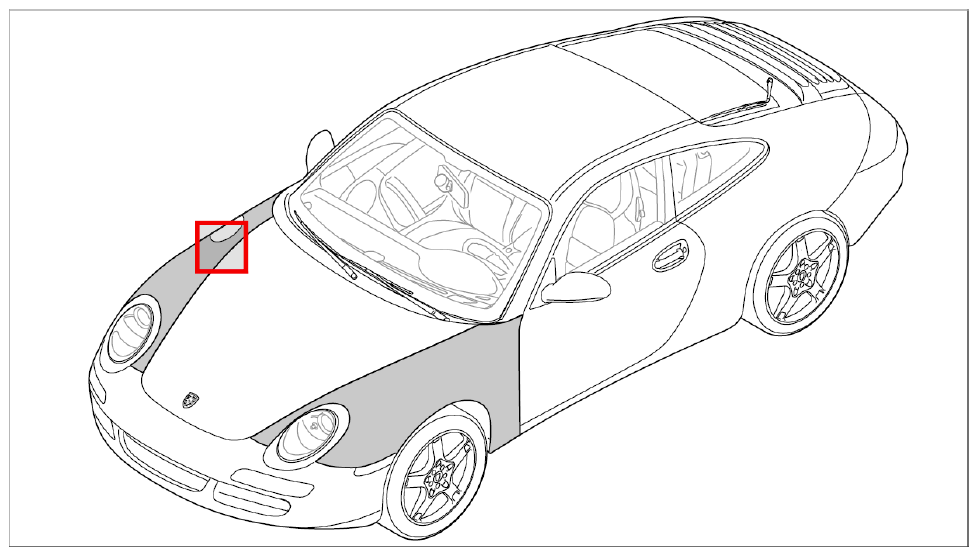

• The following points apply only to the right wing.

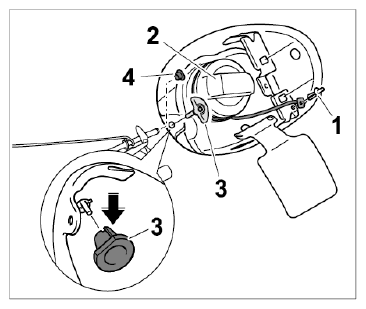

1. Press in plastic expansion rivet -1-  on fuel tank cap -2-  . Then clip in rubber stop -3-  and rubber sleeve -4-  .
