Fastening Wing To A-Pillar

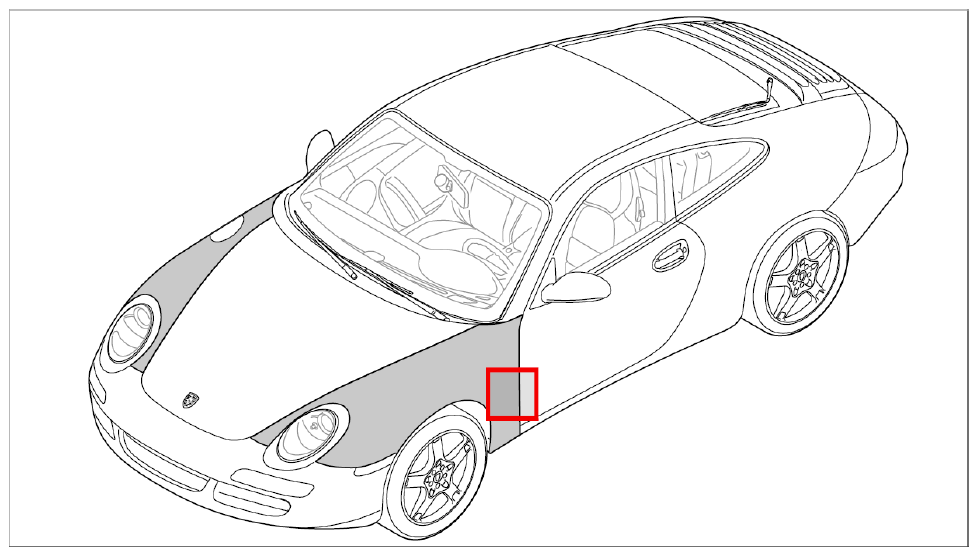

G09822564Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Install switching element for filler flap. → 553819 REMOVING AND INSTALLING SWITCHING ELEMENT FOR FILLER FLAP - chapter on "Installing"
  2. Press in fastening nut -20-  .

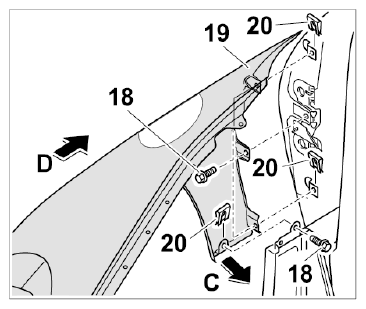

    G09822565Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Position wing -19-  on the body -C-  and slide towards A-pillar -D-  . Screw in fastening screws -18-  into the A-pillar and tighten lightly.
