Fastening Top Of Wing

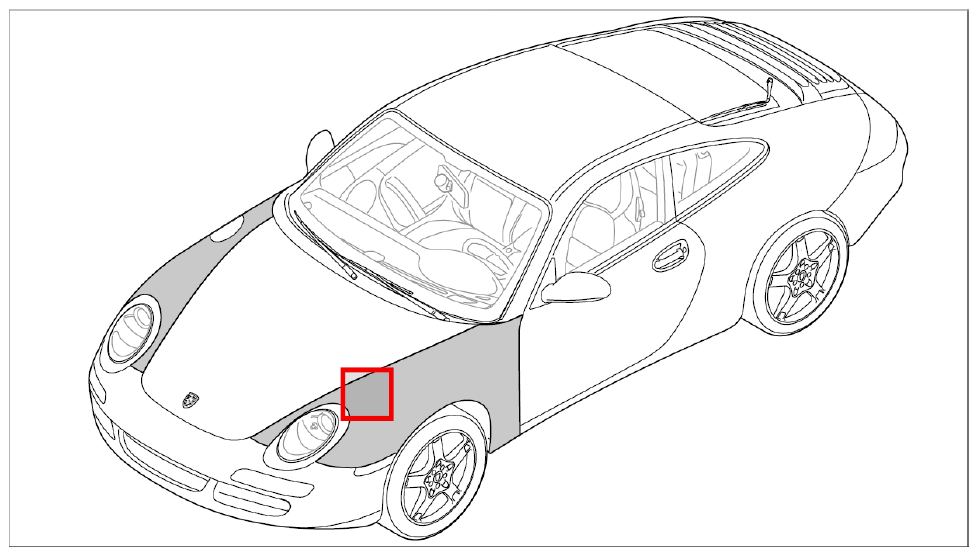

G09822566Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Screw in fastening screws -13-  on top flange and tighten lightly.

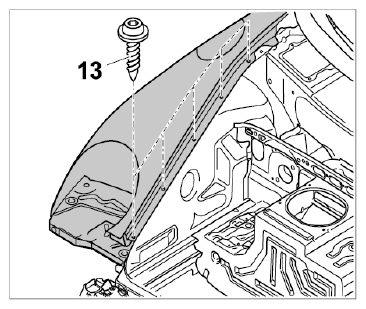

    G09822567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Adjust the contour and gap dimensions relative to the front door and front lid. → WM 5000IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS)
  3. Tighten fastening screws -13-  with specified tightening torque → Tightening torque: 3.5 ft. lb.  .
  4. Tighten fastening screws M6 -18-  with tightening torque → Tightening torque: 7.0 ft. lb.  .
