Fastening Tank Filler Neck

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

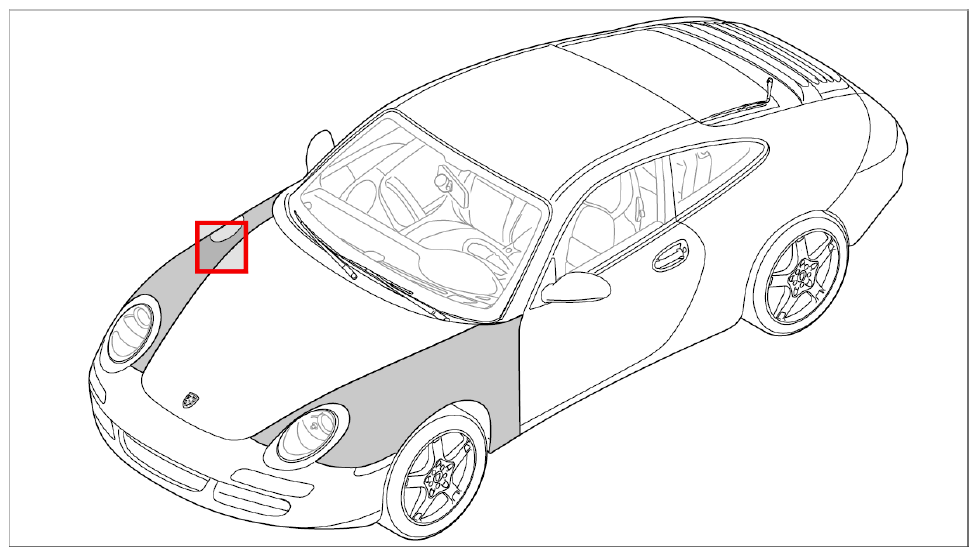

• The following points apply only to the right wing.

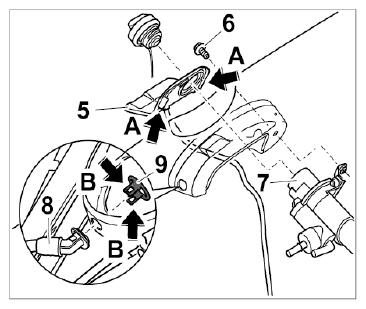

1. Install angled pipe -8-  . Press in the plastic clip -9-  until the locking tabs -B-  engage audibly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Tighten fastening screw -6-  on tank filler neck -7-  . Tightening torque → Tightening torque: 7.5 ft. lb.
3. Press in the locking tabs -A-  of the sleeve -5-  until they engage audibly.
