Fastening Bottom Of Wing

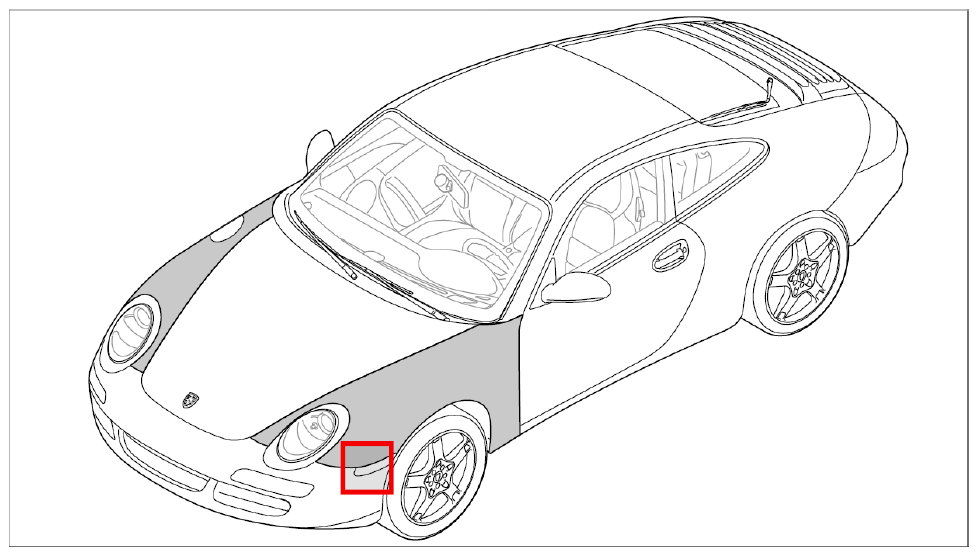

G09822568Courtesy of PORSCHE CARS NORTH AMERICA, INC.

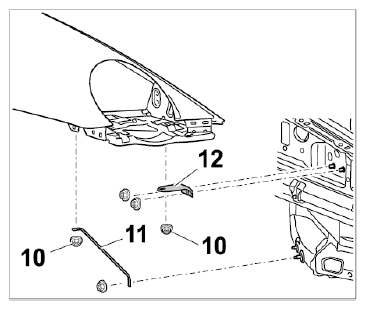

  1. Position wing strut -11-  and bracket -12-  on the body and tighten with fastening nuts -10-  . Tightening torque → Tightening torque: 7.0 ft. lb.
    G09822569Courtesy of PORSCHE CARS NORTH AMERICA, INC.
