Removing Spare-Wheel Well Insert

Information

Damaged or deformed body parts can impair torsional rigidity, flexional resistance and crash safety. Body parts can no longer be reshaped. Straightening and reshaping is not permitted. If a body part is damaged or deformed, it must be replaced.

Information

Fastening nuts cannot be used again following removal.

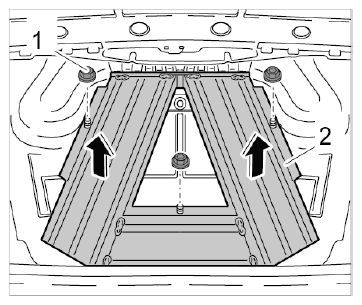

  1. Unscrew fastening nuts -1-  and remove spare-wheel well insert -2-  .
    G09822532Courtesy of PORSCHE CARS NORTH AMERICA, INC.
