Removing Floor Front Section

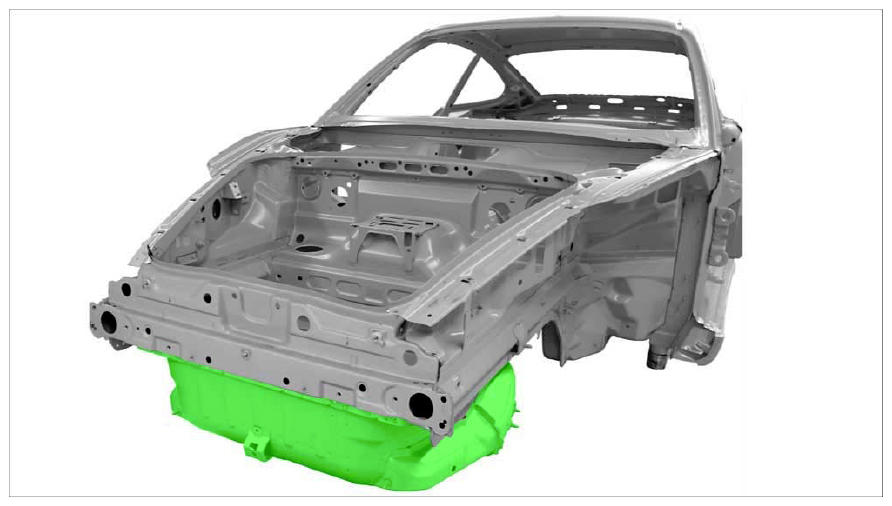

Fig 1: Floor Front Section Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

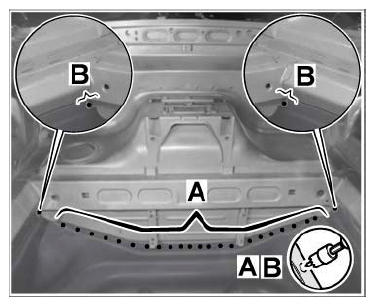

Mill off spotwelds.

1.1. Mill off spotwelds applied to the front panel in area -A- (2 plate thicknesses).

1.2. Mill off spotwelds in area -B- (1 plate thickness).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

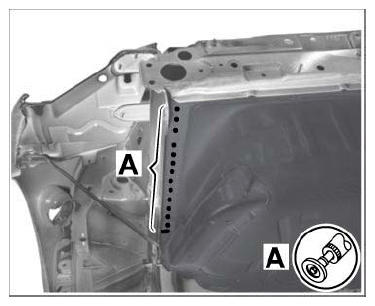

Separate spotwelds.

2.1. Separate spotwelds applied to the right side member in area -A- from below.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

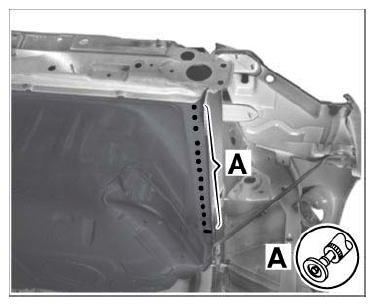

Separate spotwelds.

3.1. Separate spotwelds applied to the left side member in area -A- from below.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

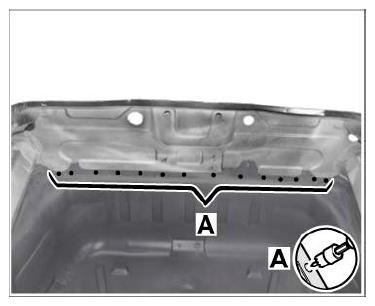

Mill off spotwelds.

4.1. Mill off spot welds applied to the front closing panel in area -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
