Installing Spare-Wheel Well Insert

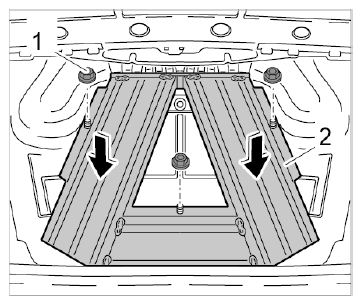

  1. Place spare-wheel well insert -2-  into the floor front section and secure using new fastening nuts -1-  . → Tightening torque: 9.7 Nm (7.5 ft. lb)
    G09822545Courtesy of PORSCHE CARS NORTH AMERICA, INC.
