Removing Body Front Section

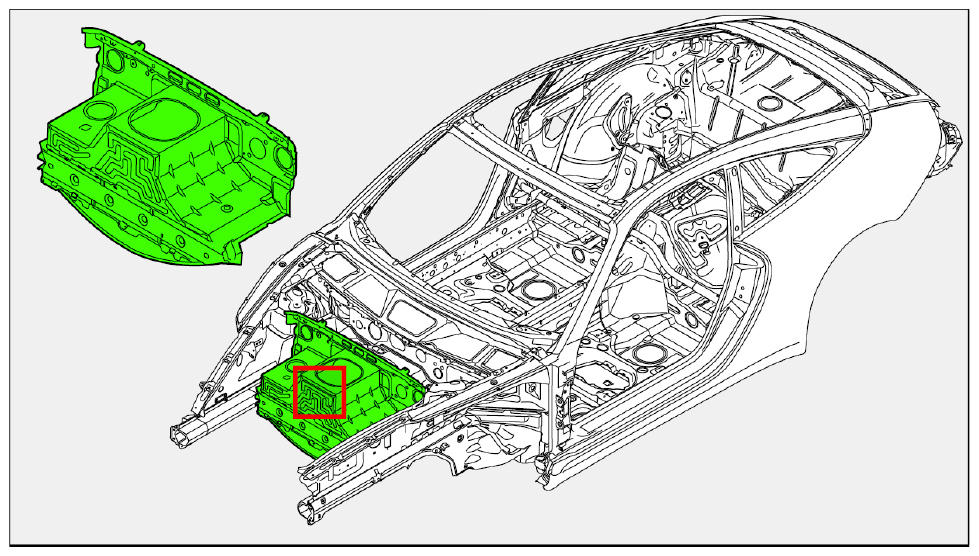

Fig 1: Front Panel Component Location
G09822506Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove end plate. → 501055 REPLACING END PLATE  - section on "Removing"
  2. Remove floor front section. → 502055 REPLACING FLOOR FRONT SECTION  - section on "Removing"
  3. Mill off spotwelds
    1. 3.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.

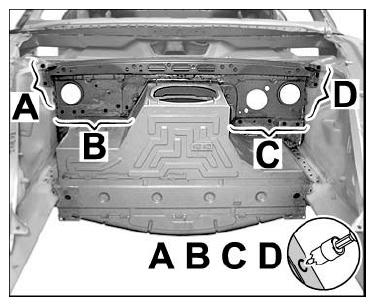

      G09822507Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Mill off spotwelds
    1. 4.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.

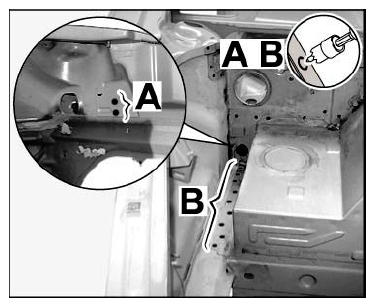

      G09822508Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Mill off spotwelds
    1. 5.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.

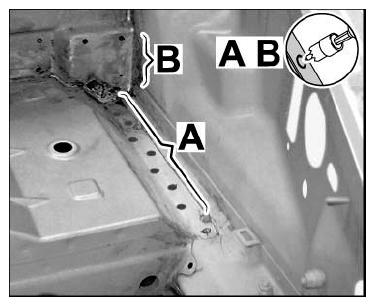

      G09822509Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Mill off spotwelds
    1. 6.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.

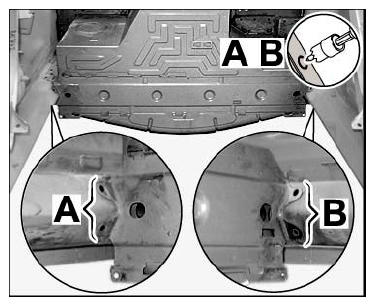

      G09822510Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Separate inert-gas welded seams
    1. 7.1. Separate inert-gas welded seams in areas -A-  and -B-  using a parting grinder.

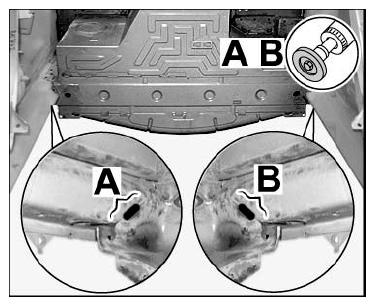

      G09822511Courtesy of PORSCHE CARS NORTH AMERICA, INC.
