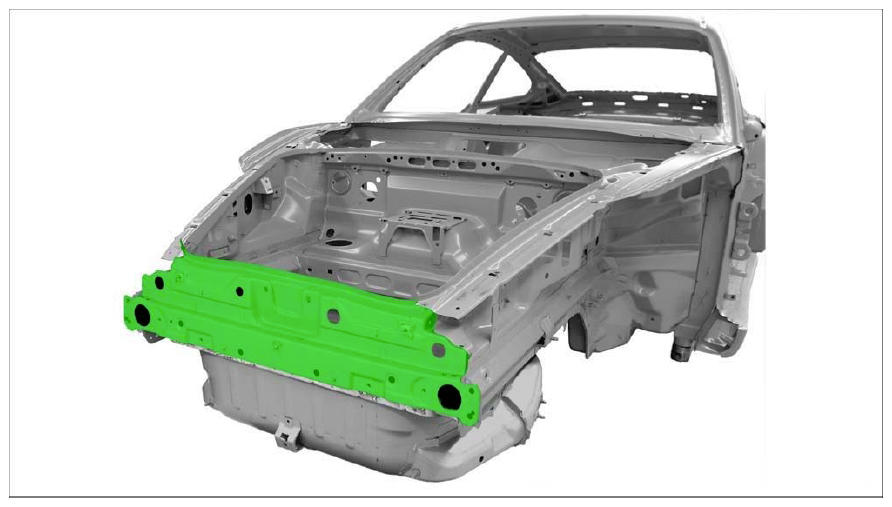

Removing Front Closing Panel

G09822478Courtesy of PORSCHE CARS NORTH AMERICA, INC.

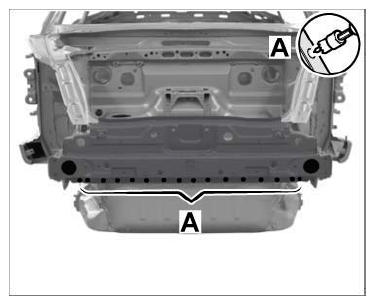

  1. Milling off spotwelds
    1. 1.1. Mill off spotwelds in area -A-  using a spotweld cutter.
      G09822479Courtesy of PORSCHE CARS NORTH AMERICA, INC.

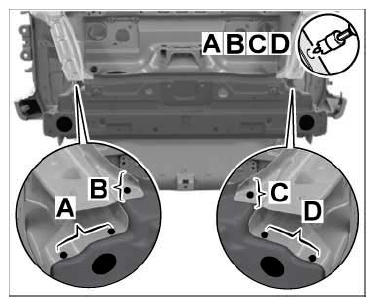

  2. Milling off spotwelds
    1. 2.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.
      G09822480Courtesy of PORSCHE CARS NORTH AMERICA, INC.

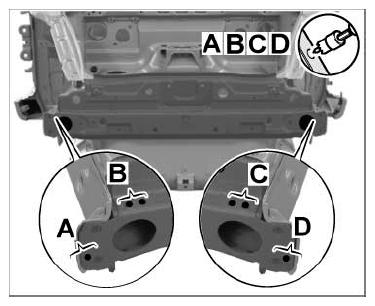

  3. Milling off spotwelds
    1. 3.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.
      G09822481Courtesy of PORSCHE CARS NORTH AMERICA, INC.

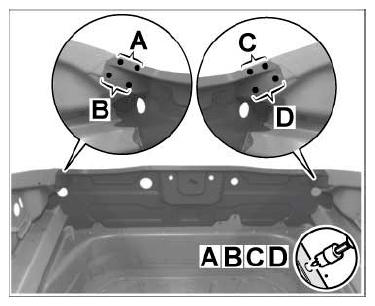

  4. Milling off spotwelds
    1. 4.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.
      G09822482Courtesy of PORSCHE CARS NORTH AMERICA, INC.

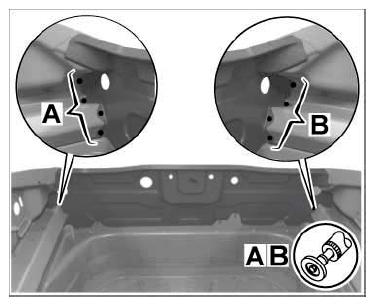

  5. Separating spotwelds
    1. 5.1. Separate spotwelds in areas -A-  and -B-  using a parting grinder.
      G09822483Courtesy of PORSCHE CARS NORTH AMERICA, INC.

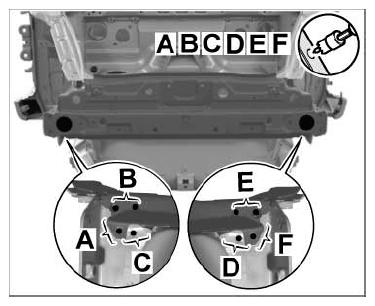

  6. Milling off spotwelds
    1. 6.1. Mill off spotwelds in areas -A, B, C, D, E, F-  using a spotweld cutter.
      G09822484Courtesy of PORSCHE CARS NORTH AMERICA, INC.
