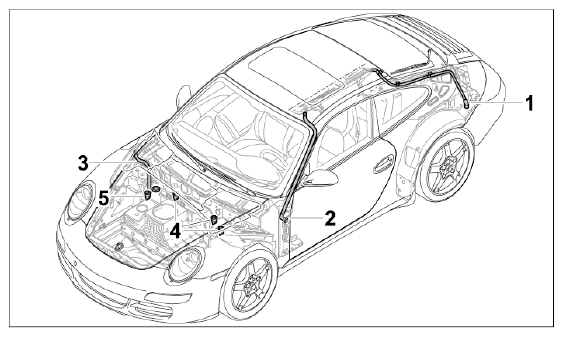

Water Drainage Diagram

The water drains -1-  and -2-  can be found on both sides of the vehicle (only vehicles with sliding roof).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Water drain: rear of sliding roof
2. Water drain: front of sliding roof
3. Water drain: tank tray
4. Water drain: plenum panel
5. Water drain: plenum panel (vehicles without luggage compartment ventilation)
