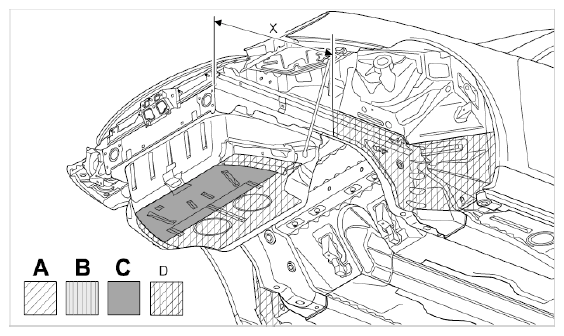

Bottom Of Front Of Vehicle, Layout Plan

G09822462Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. A -0.2 mm to 0.4 mm
  2. B -0.5 mm to 0.7 mm
  3. C -1 mm to 1.3 mm
  4. D -0.4 mm to 0.6 mm
  5. X - 550 mm
