Side Of Rear End

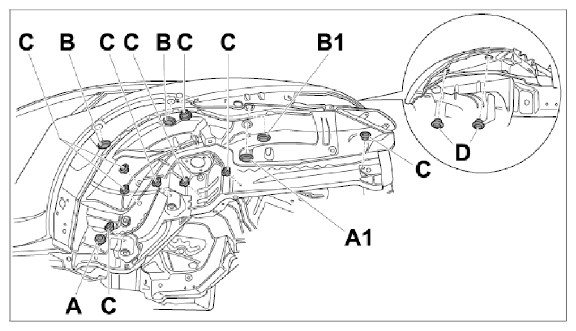

G09822414Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rubber grommet hole Ø 20 mm
    1. A1 - Rubber grommet hole (only when no sliding roof) Ø 20 mm
  2. Rubber grommet hole Ø 30 mm
    1. B1 - Rubber grommet hole (Coupe only) Ø 30 mm
  3. Plug (right side only) Ø 10 mm
  4. Plug hole Ø 20 mm
