Side Body Front Section

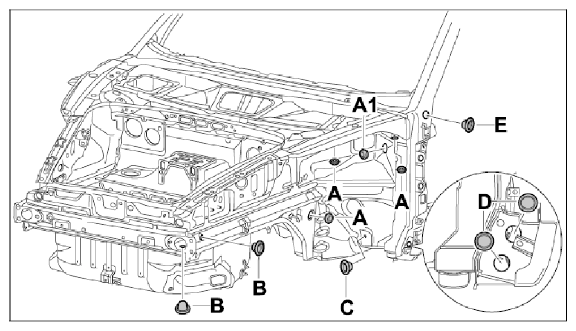

G09822409Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rubber grommet hole Ø 20 mm
    1. A1 - Rubber grommet hole (only when no sliding roof) Ø 20 mm
  2. Plug hole Ø 10 mm
  3. Plug hole Ø 15 mm
  4. Rubber grommet hole (Cabriolet only) Ø 30 mm
  5. Plug hole (Targa only) Ø 10 mm
