Bottom Of Rear End

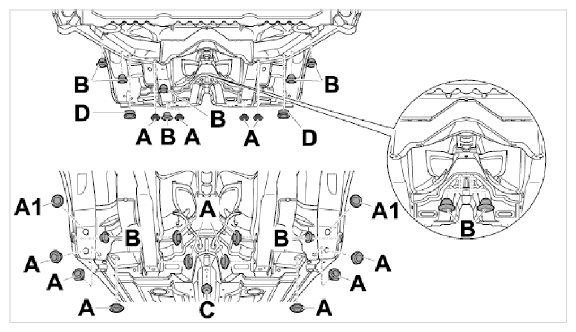

G09822412Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rubber grommet hole Ø 20 mm
    1. A1 - Plug (Coupe and Targa only) Ø 33 mm
  2. Plug Ø 10 mm
  3. Plug hole Ø 15 mm
  4. Plug hole Ø 20mm
