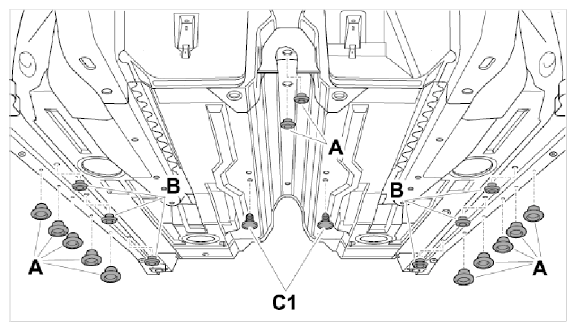

Bottom Of Lower Side Member And Floor

G09822410Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Cap hole Ø 15 mm
  2. Cap hole Ø 20 mm
  1. C1 - Plug hole (only rear-wheel drive) Ø 10 mm
