WM 5000IN Diagram: Plug Plan (All Models)
>>
Diagram: Plug Plan
>>

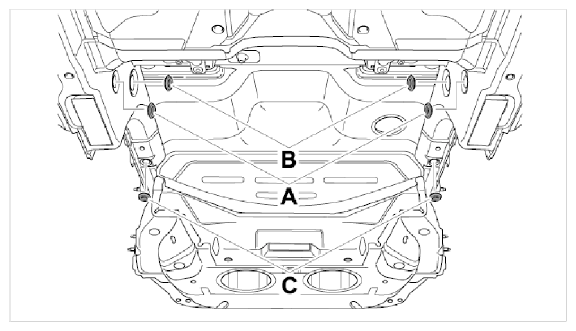

Bottom Of Front Of Vehicle
Bottom Of Front Of Vehicle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rubber grommet hole Ø 20 mm
Rubber grommet hole Ø 30 mm
Plug hole Ø 20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
