Gap dimensions, body front

Information

Set gap dimensions on the lids, doors and covers or accessories in accordance with the gap specifications.
If the clearance in the opening is too great or too small, the movable body or the accessories must be centered accordingly.
Ensure that the gaps do not taper or do not narrow at local points.
The given values are guidelines which should be observed as far as possible.
The guidelines apply to repair and assembly work.
Use star gauges to check the gap dimensions, Star Gauges For Body Gap Dimensions Nr. 127-1 Refer to: Tools .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

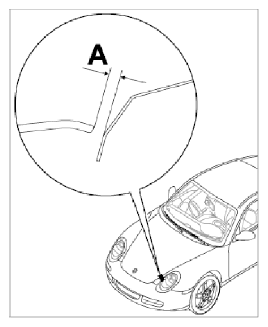

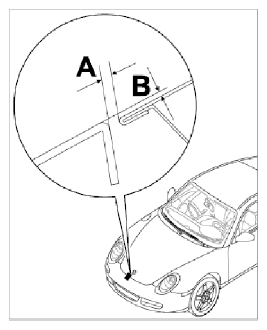

Front lid to front apron		Gap dimension A	4.5 mm	+/-1 mm
Front lid to front apron	Lid only lowered	Gap dimension B	2 mm

G09822384

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

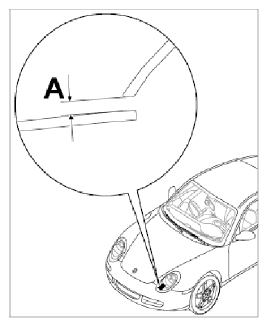

Main headlight to inner wing	Determine left and right gap	Gap dimension A	4.5 mm	+/-1 mm

G09822385

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

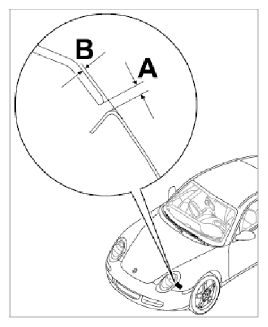

Main headlight to front apron		Gap dimension A	4 mm	+/-1.5 mm

G09822386

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

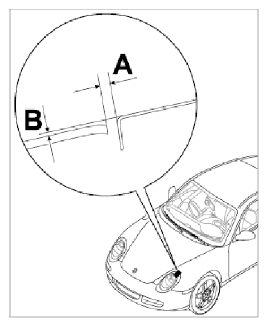

Main headlight to external wing		Gap dimension A	4 mm	+1 mm
Main headlight to external wing	Only lowered	Gap dimension B	1 mm

G09822387

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Main headlight to top wing		Gap dimension A	4 mm	+/-1 mm
Main headlight to top wing	Only lowered	Gap dimension B	1 mm

G09822388

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

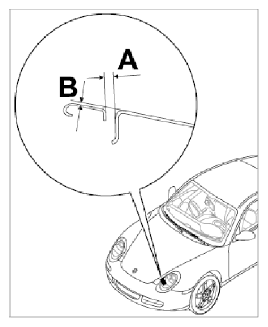

Front lid to wing		Gap dimension A	4 mm	+/-1 mm
Front lid to wing	Only lowered	Gap dimension B	0.5 mm

G09822389

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

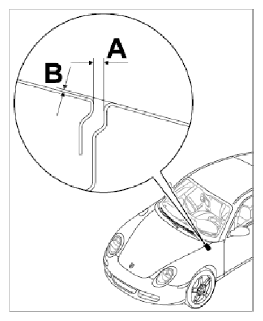

Wing to front lid	Determine left and right gap	Gap dimension A	4 mm	+1 mm
Wing to front lid	Only lowered	Gap dimension B	0.5 mm

G09822390

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

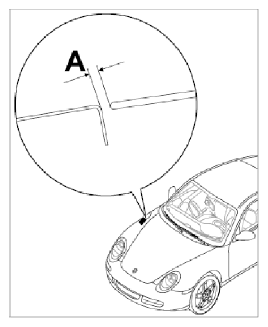

Filler flap to wing	All the way round	Gap dimension A	3.5 mm	+/-0.5 mm

G09822391

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

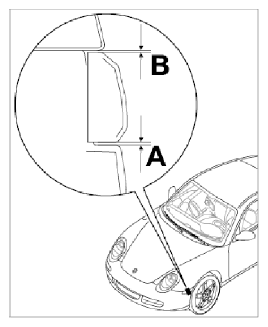

Front apron to side direction indicator		Gap dimension A	1.5 mm
Wing to side direction indicator		Gap dimension B	0.5 mm	+0.5 mm

G09822392

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

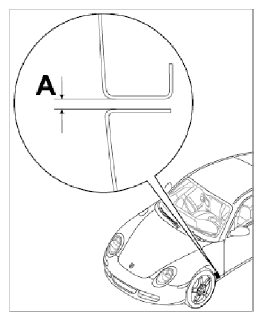

Wing to outer side panel	Even transition from front to rear	Gap dimension A	4.5 mm	+/-1 mm
