Gap Dimensions, Body Centre

Information

Set gap dimensions on the lids, doors and covers or accessories in accordance with the gap specifications.
If the clearance in the opening is too great or too small, the movable body or the accessories must be centered accordingly.
Ensure that the gaps do not taper or do not narrow at local points.
The given values are guidelines which should be observed as far as possible.
The guidelines apply to repair and assembly work.
Use star gauges to check the gap dimensions, Star Gauges For Body Gap Dimensions Nr. 127-1 Refer to: Tools .

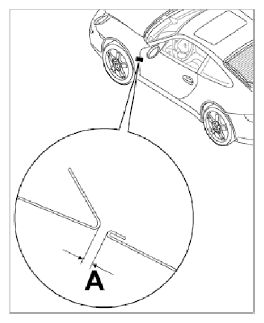

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Door to wing		Gap dimension A	4 mm	+/-0.5 mm

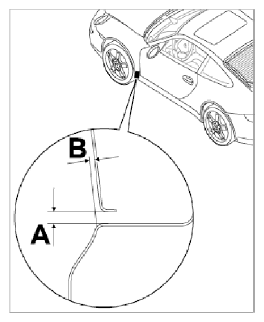

G09822394

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Wing to outer side panel		Gap dimension A	4.5 mm	+/-1 mm
Wing to outer side panel	Only lowered	Gap dimension B	2 mm

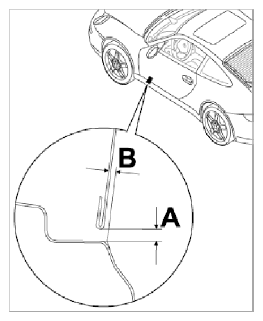

G09822395

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

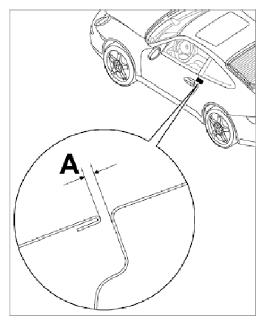

Door to outer side panel		Gap dimension A	4.5 mm	+/-1 mm
Door to outer side panel	Doors only lowered	Gap dimension B	2 mm

G09822396

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Door to outer side panel	Doors only raised	Gap dimension A	4 mm	+/-0.8 mm

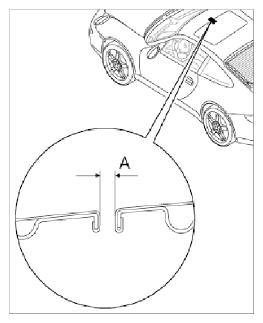

G09822397

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Sliding roof panel at front to outer roof panel	Only lowered at front	Gap dimension A	5 mm

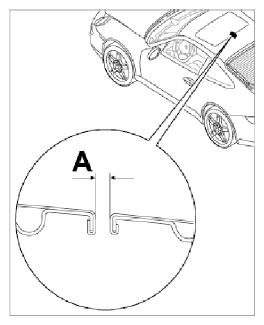

G09822398

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Sliding roof panel at rear to outer roof panel	Only raised at rear	Gap dimension A	6 mm

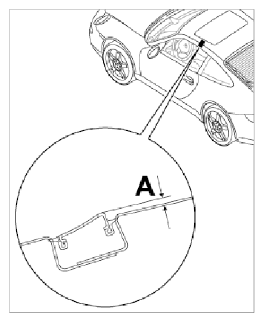

G09822399

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Roof joint strip to outer roof panel		Gap dimension A	2 mm

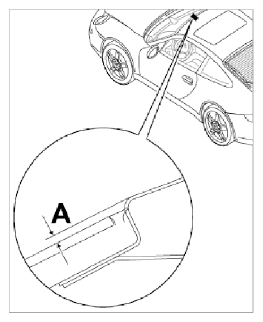

G09822400

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

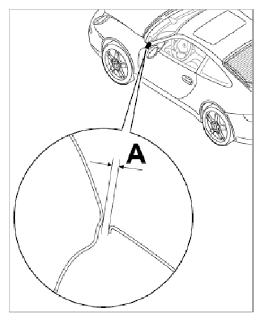

Windscreen to windscreen frame	Only lowered	Gap dimension A	2 mm

G09822401

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Cowl panel frame to wing	Continuous transition	Gap dimension A	3 mm	+/-1 mm

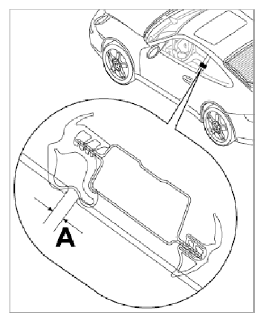

G09822402

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Door window to side window	Door window lowered by max. 1 mm	Gap dimension A	7 mm	+/-1 mm
