Removing Relay Carrier

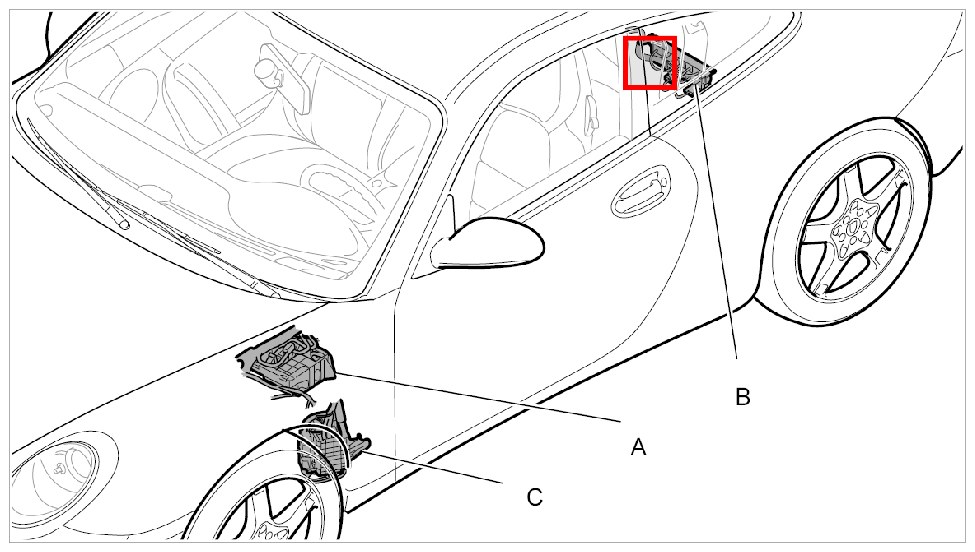

Fig 1: Identifying Relay Carrier Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B  - Relay carrier

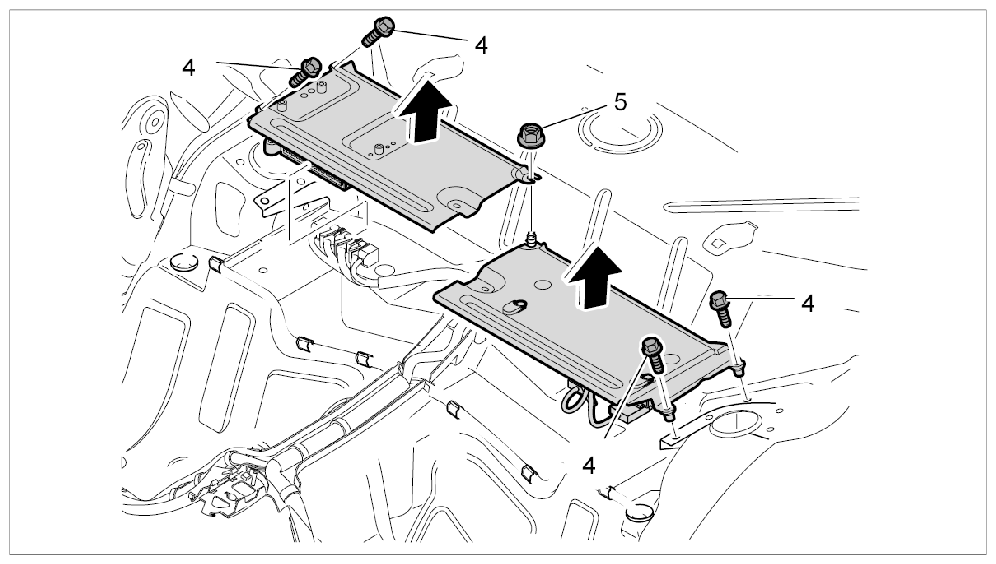

Fig 2: Removing Retaining Brackets

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew the four fastening screws -4-  and the fastening nut -5-  and lift the retaining brackets for the DME control module and the relay carrier.
2. Unscrew the two fastening nuts for the relay carrier and disengage the relay carrier from the retaining bracket.

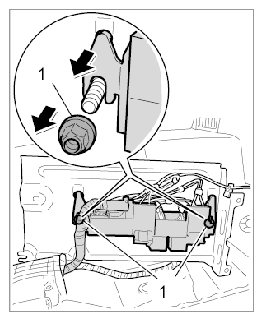

   Fig 3: Removing Fastening Nuts Of Relay Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
