Installing Relay Carrier

Engage relay carrier on retaining bracket and screw down with the two fastening screws -1- . → Tightening torque: 4.5 Nm (3.5 ft. lb.)

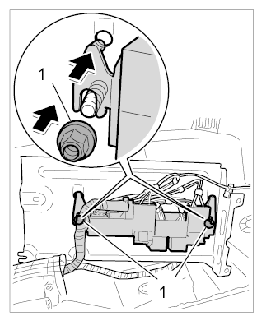

Fig 1: Engaging Relay Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

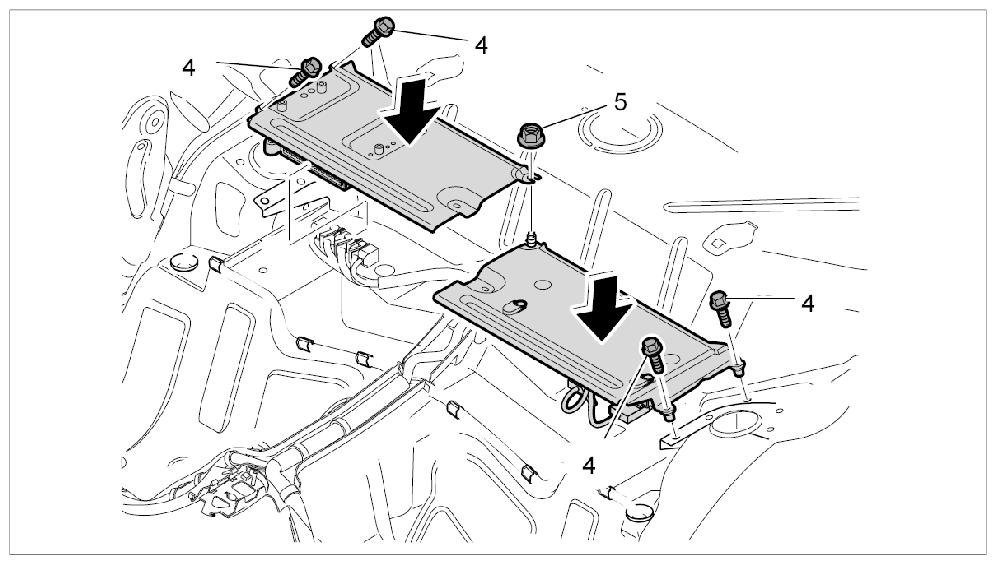

Fig 2: Installing Retaining Brackets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place retaining brackets on the body and screw down with the four fastening screws -4- and the fastening nut -5- . → Tightening torque: 2.2 Nm (1.5 ft. lb.) → Tightening torque: 4.5 Nm (3.5 ft. lb.)
