Removing Power Distributor

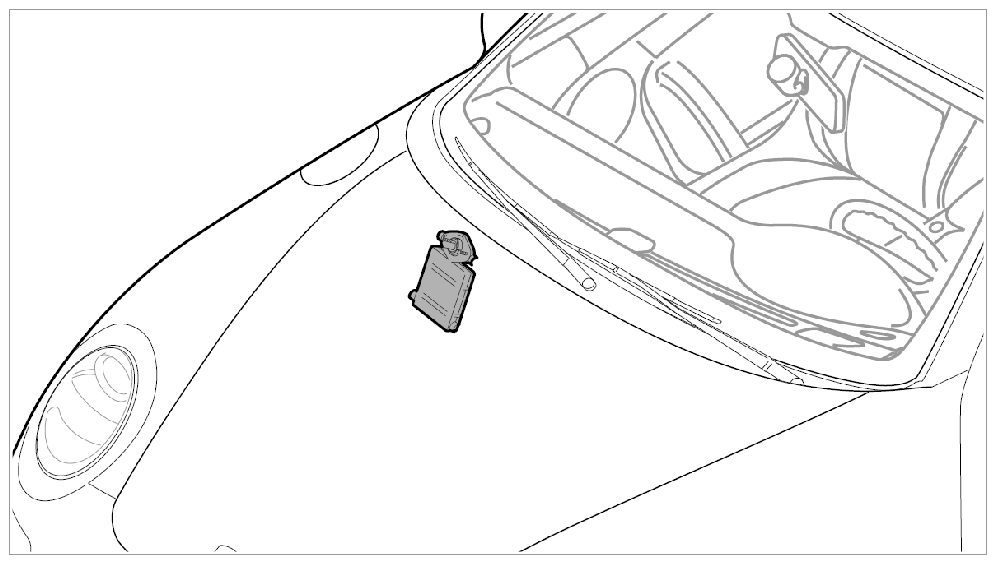

Fig 1: Identifying Power Distributor Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.

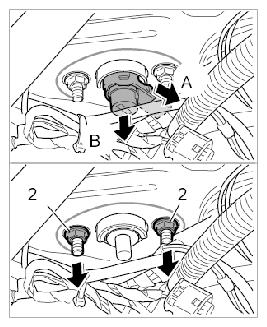

Release the locking mechanism of the B+ line -A- and pull off the B+ connection from the power distributor -B- .

Fig 2: Pulling Off B+ Connection From Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the two fastening nuts -2- .
Unscrew both plastic screws -1- for the cover in the passenger's footwell and remove the cover downwards.

Fig 3: Removing Plastic Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

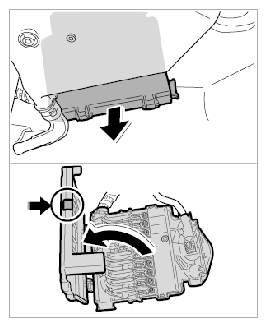

Pull the power distributor away from the firewall and lower it down into the passenger's footwell.

Fig 4: Disengaging Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

If a new power distributor needs to be installed or a fuse element replaced, then a new cover for the fuse elements (blue) and a new seal label (red) must be fitted. The spare parts are summarized in the PET as a package.
Disengage the lock and fold the cover open. Pull off the original seal label -arrow- .

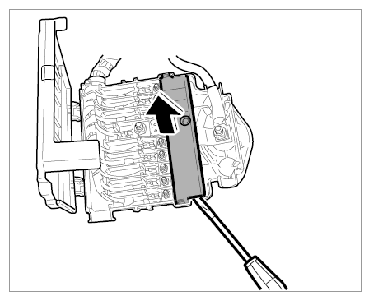

Unclip the cover for the fuse elements with a screwdriver.

Fig 5: Unclipping Cover Of Fuse Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mark the connection leads to the relevant fuse element.

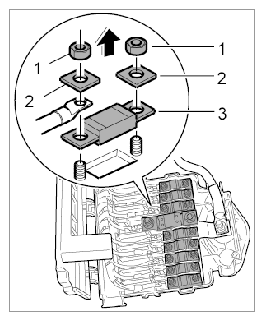

Fig 6: Removing Fastening Nuts And Fuse Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening nuts -1- , remove the washer -2- and take out the fuse element -3- .
Unscrew fastening nut for the B+ line and remove the power distributor.
