Loosening Fuse Box

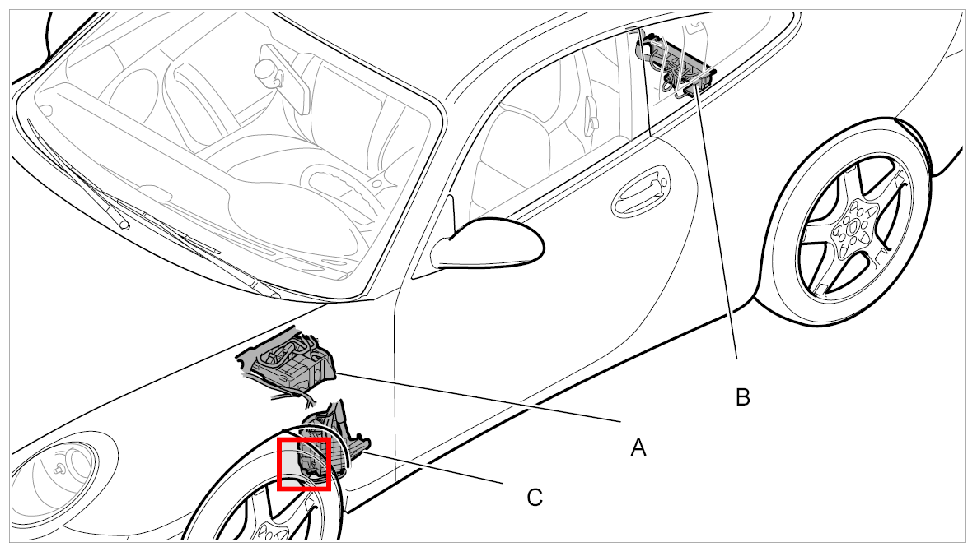

Fig 1: Identifying Fusebox Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

C  - Fuse box

1. Unclip electric plug connection at the fuse box and move it aside.

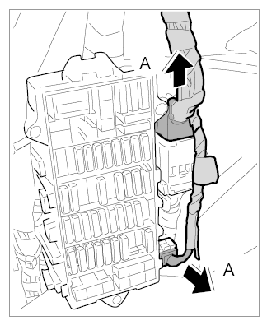

   Fig 2: Unclipping Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew the fastening nut -1-  , pull the fuse box forward and disengage it from the support.

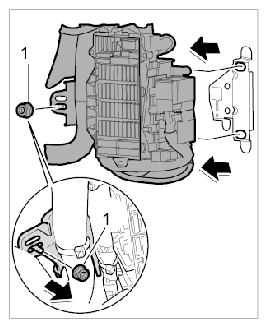

   Fig 3: Removing Fastening Nut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
